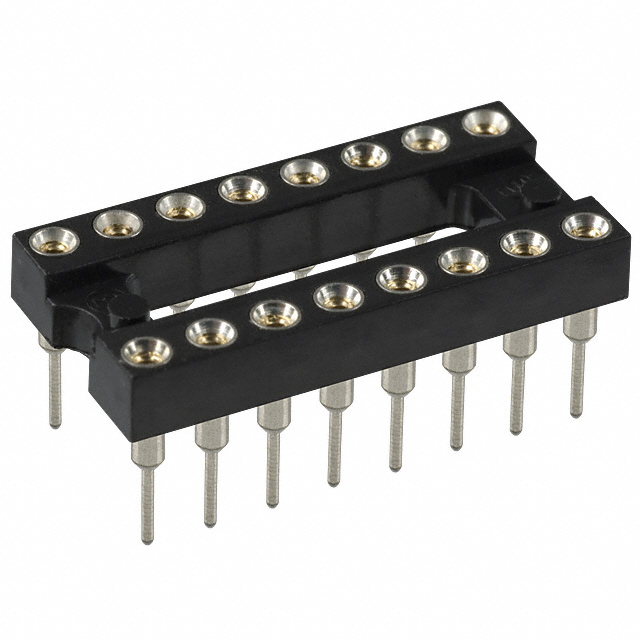

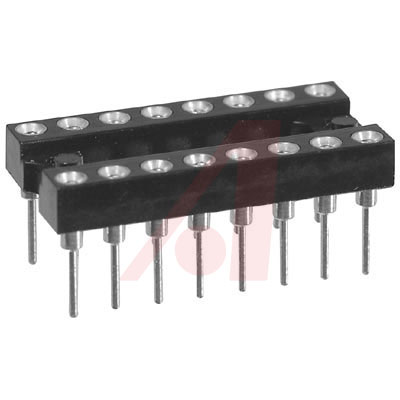

111-93-316-41-001000

16 位置 2.54 mm 长 焊接 焊尾 连接器 DIP 插座

Dual In Line Socket, Long Solder Tail for Multilayer PC-Boards, Open Frame

* DIP sockets with increased solder tail, allowing application on multilayer PCBs up to .139 " No Suggestions, 4-finger BeCu #30 clip

得捷:
CONN IC DIP SOCKET 16POS GOLD

艾睿:
Easily interface your multiple wired connection by implementing this dip socket 111-93-316-41-001000 connector socket manufactured from Mill-Max Mfg. Corp. This SKT connector&s;s 16 contacts that are made out of beryllium copper and plated with gold over nickel. This is a 2-row connector. It has a socket type gender. It has a straight body orientation. It has a maximum voltage rating of 150 VDC|100VAC. Its pitch is 2.54 mm. 111-93-316-41-001000 is housed in polychlorinated terphenyl. This device has a maximum current rating of 3 A. It is insulated with polychlorinated terphenyl. This product is 20.32 mm long, 4.19 mm tall and 10.16 mm deep. It uses the solder termination method. This connector socket has an operating temperature of -55 to 125 °C.

Allied Electronics:
Conn; IC Socket; DIP; 16; Open; 111 Series; Thru-Hole; 0.3"; 0.1" Pin Spcng; Straight; 3A

Chip1Stop:
Conn DIP Socket SKT 16 POS 2.54mm Solder ST Thru-Hole Tube

Verical:
Conn DIP Socket SKT 16 POS 2.54mm Solder ST Thru-Hole Tube
