110-99-306-41-001000

Conn DIP Socket SKT 6POS 2.54mm Solder ST Thru-Hole Tube

Standard Solder Tail Open Frame DIP Sockets, Beryllium Copper Contact Material

得捷:
CONN IC DIP SOCKET 6POS TIN-LEAD

贸泽:
IC & Component Sockets 06P TIN PIN TIN CONT

艾睿:

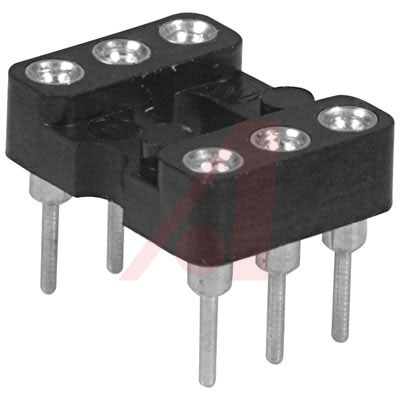

This dip socket 110-99-306-41-001000 connector socket from Mill-Max Mfg. Corp. will allow you to interface multiple cables. This SKT connector&s;s 6 contacts that are made out of beryllium copper alloy and plated with tin-lead over nickel. It has a straight body orientation. It has a maximum voltage rating of 150 VDC|100VAC. It has a socket type gender. Its pitch is 2.54 mm. This is a 2-row connector. This device has a maximum current rating of 3 A. 110-99-306-41-001000 is housed in polychlorinated terphenyl. This product is 7.6 mm long, 4.19 mm tall and 10.16 mm deep. This connector socket has an operating temperature of -55 to 125 °C. It uses the solder termination method. It is insulated with polychlorinated terphenyl.

Allied Electronics:
Conn; IC Socket; DIP; 6; Open; 110 Series; Thru-Hole; 0.3"; 0.1" Pin Spcng; Straight; 3A

Chip1Stop:
Conn DIP Socket SKT 6 POS 2.54mm Solder ST Thru-Hole Tube

Verical:
Conn DIP Socket SKT 6 POS 2.54mm Solder ST Thru-Hole Tube
