110-13-318-41-001000

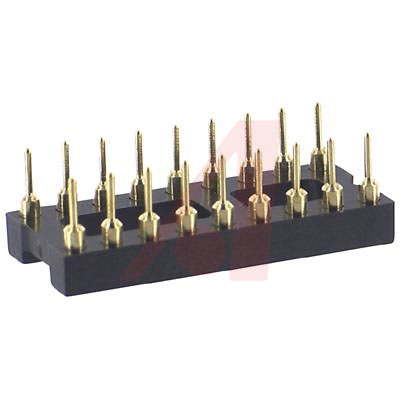

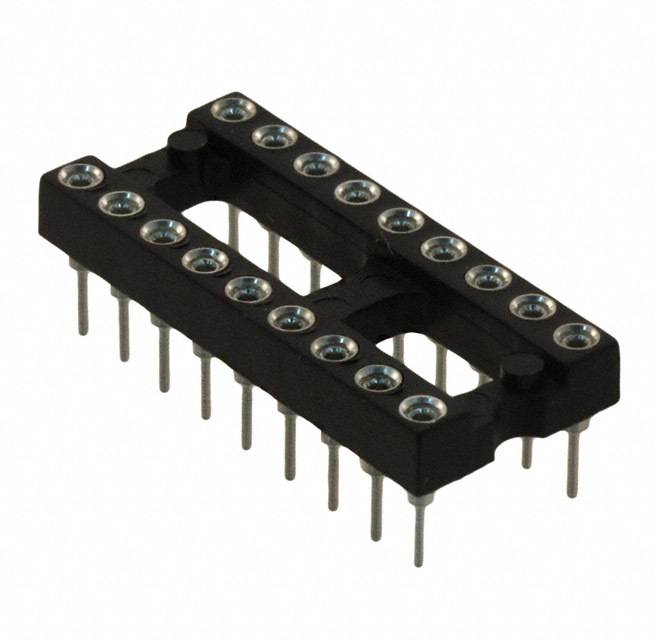

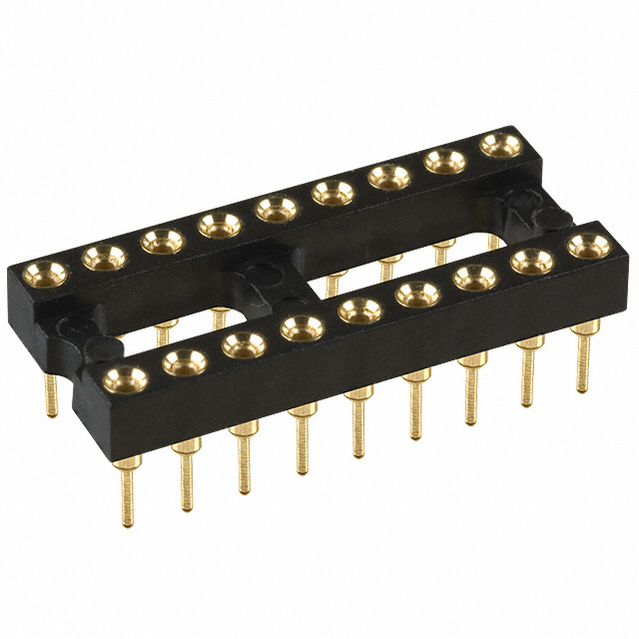

MILL MAX  110-13-318-41-001000  芯片插座, DIP-18, 通孔安装

Dual In Line Socket, Standard Solder Tail Open Frame

* All DIP sockets accept 0.015 to 0.025" Dia. and standard IC No Suggestions, 4-finger BeCu #30 clip rated at 3 A

* Uses #1001 pin

得捷:
CONN IC DIP SOCKET 18POS GOLD

e络盟:
插座, DIP 插座, 18路, 通孔

艾睿:
This dip socket 110-13-318-41-001000 connector socket from Mill-Max Mfg. Corp. expands your design options by giving you a strong and tight connection for multi-wired cables. This SKT connector&s;s 18 contacts that are made out of beryllium copper alloy and plated with gold over nickel. It has a maximum voltage rating of 150 VDC|100VAC. This is a 2-row connector. It has a straight body orientation. Its pitch is 2.54 mm. It has a socket type gender. 110-13-318-41-001000 is housed in polychlorinated terphenyl. This device has a maximum current rating of 3 A. This product is 22.8 mm long, 4.19 mm tall and 10.1 mm deep. It uses the solder termination method. It is insulated with polychlorinated terphenyl. This connector socket has an operating temperature of -55 to 125 °C.

Allied Electronics:
Socket, DIP; 18Pins; Low Profile; Open; Solder Tail; 0.3In.; Beryllium Copper; Gold; SMD

Chip1Stop:
Conn DIP Socket SKT 18 POS 2.54mm Solder ST Thru-Hole Tube

Verical:
Conn DIP Socket SKT 18 POS 2.54mm Solder ST Thru-Hole Tube

Newark:
# MILL MAX  110-13-318-41-001000  IC & Component Socket, 110 Series, DIP Socket, 18 Contacts, 2.54 mm, 7.62 mm, Gold Plated Contacts
