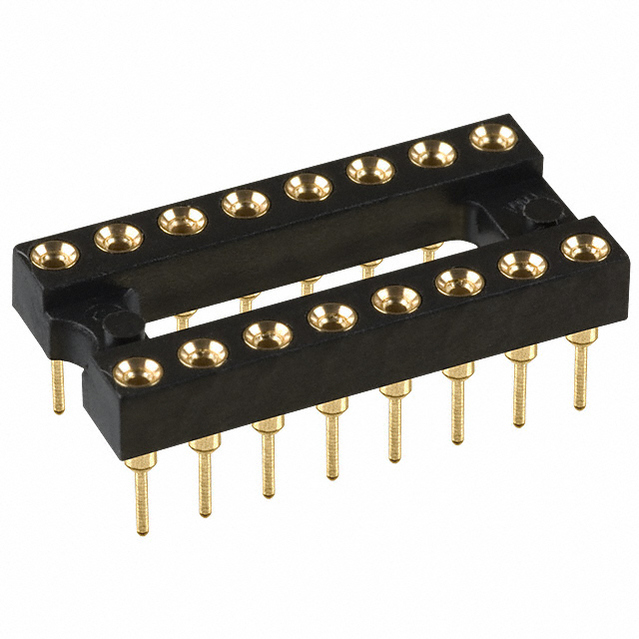

110-13-316-41-001000

MILL MAX  110-13-316-41-001000  插座, DIP, 16路, 通孔

16（2 x 8） 位置 DIP，0.3"（7.62mm）行距 插口 镀金 通孔

得捷:
CONN IC DIP SOCKET 16POS GOLD

贸泽:
IC & Component Sockets 16P GLD PIN GLD CONT

e络盟:
芯片和元件插座, 16 触点, DIP插座, 2.54 mm, 110 Series, 7.62 mm, 铍铜

艾睿:
Ideal for multiple wires which need to be connected this dip socket 110-13-316-41-001000 connector socket from Mill-Max Mfg. Corp. will exceed your needs. This SKT connector&s;s 16 contacts that are made out of beryllium copper alloy and plated with gold over nickel. It has a straight body orientation. This is a 2-row connector. It has a maximum voltage rating of 150 VDC|100VAC. Its pitch is 2.54 mm. It has a socket type gender. This device has a maximum current rating of 3 A. 110-13-316-41-001000 is housed in polychlorinated terphenyl. This connector socket has an operating temperature of -55 to 125 °C. It is insulated with polychlorinated terphenyl. This product is 20.3 mm long, 4.19 mm tall and 10.16 mm deep. It uses the solder termination method.

Allied Electronics:
Conn; IC Socket; DIP; 16; Open; 110 Series; Thru-Hole; 0.3"; 0.1" Pin Spcng; Straight; 3A

Chip1Stop:
Conn DIP Socket SKT 16 POS 2.54mm Solder ST Thru-Hole Tube

Verical:
Conn DIP Socket SKT 16 POS 2.54mm Solder ST Thru-Hole Tube

Newark:
# MILL MAX  110-13-316-41-001000  IC & Component Socket, 110 Series, DIP Socket, 16 Contacts, 2.54 mm, 7.62 mm, Gold Plated Contacts
