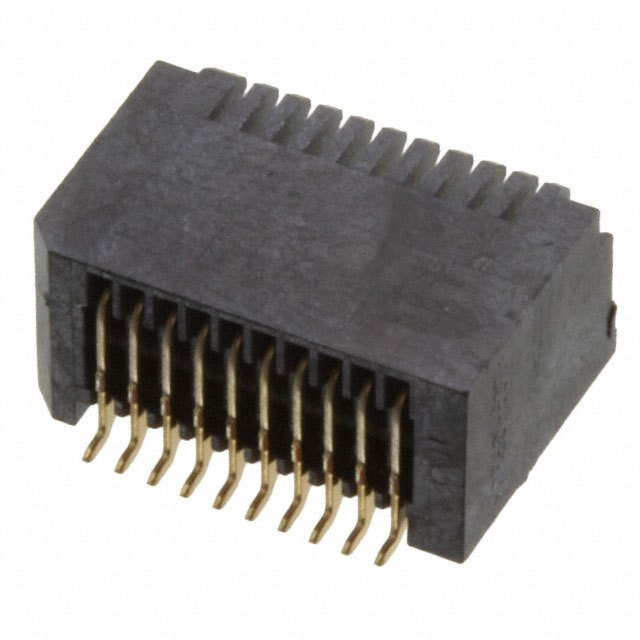

XFP 20 位置 0.8 mm 间距 密集式 直角 插头 连接器 表面贴装
SFP, 20 POSN, 0.8MM PITCH, SUR
Product Highlights
SFP Application
Fibre Channel, Gigabit Ethernet, InfiniBand™
Connector
Without Cage
Mount Style = Double Sided, Single Sided
得捷:
CONN SFP RCPT 20POS SLD R/A SMD
立创商城:
1658197-1
艾睿:
This sfp 1658197-1 telephone and telecom connector from TE Connectivity is the perfect connector for high-power applications. This RCP connector&s;s 20 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 120 VAC. It has a right angle body orientation. This connector has a single port. It has a receptacle type gender. Its pitch is 0.8 mm. This device has a maximum current rating of 0.5 A/contact. It uses the solder termination method. This product is 5.4 mm tall. This part has an operating temperature of -55 to 85 °C. 1658197-1 is housed in black liquid crystal polymer.
安富利:
Conn SFP RCP 20 POS 0.8mm Solder RA SMD 20 Terminal 1 Port Reel
Verical:
Conn SFP RCP 20 POS 0.8mm Solder RA SMD 20 Terminal 1 Port Reel
Newark:
# AMP - TE CONNECTIVITY 1658197-1 I/O Connector, 20 Contacts, Receptacle, SFP, Surface Mount, PCB Mount
MASTER:
PT CONNECTOR ASSEMBLY, LUBED, 20 POSITION SFP, RIGHT ANGLE 0.8MM PITCH
Powell:
Pluggable Connectors, Cages, Transceivers & Accessories
Online Components:
SFP, 20 POSN, 0.8MM PITCH, SUR
Electro Sonic:
SFP, 20 POSN, 0.8MM PITCH, SUR
触点数 20
极性 Female
触点电镀 Gold
易燃性等级 UL 94 V-0
针脚数 20
额定电流Max 0.5A/触头
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压Max 120 VAC
安装方式 Surface Mount
封装 -
高度 5.4 mm
封装 -
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 SFP
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536698000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1658197-1 TE Connectivity 泰科 | 当前型号 | 当前型号 |
1888247-2 泰科 | 完全替代 | 1658197-1和1888247-2的区别 |
1367073-1 泰科 | 完全替代 | 1658197-1和1367073-1的区别 |
1367073-2 泰科 | 完全替代 | 1658197-1和1367073-2的区别 |
