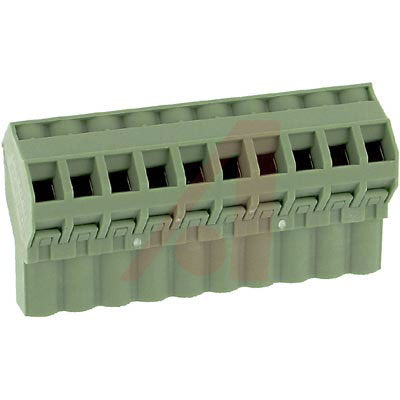

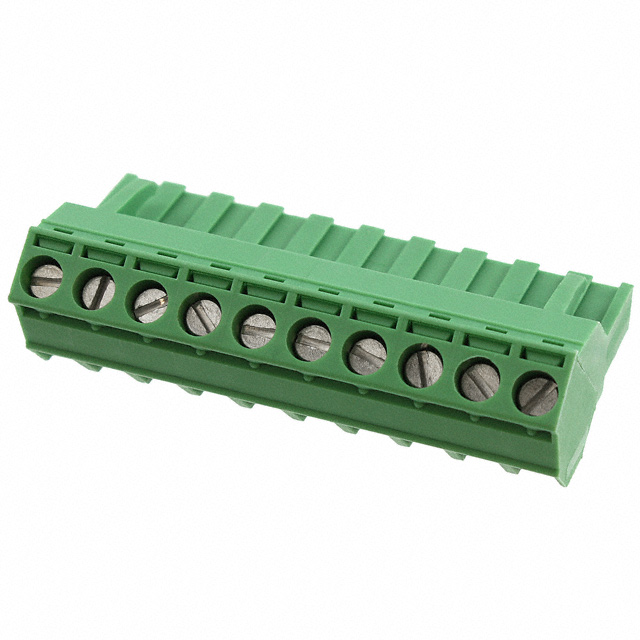

1826364

可插拔接线端子 10 Pos 5.08mm pitch Plug 24-12 AWG Screw

10 针位端子块 插头，母插口 0.200"（5.08mm） - 225° 自由悬挂

得捷:
TERM BLOCK PLUG 10POS 5.08MM

贸泽:
可插拔接线端子 10 Pos 5.08mm pitch Plug 24-12 AWG Screw

艾睿:
Create a bridge between two sides of a circuit by implementing this 1826364 PCB terminal block from Phoenix Contact. This F connector has 10 contacts that are plated with tin. It has a female type gender. It has a maximum voltage rating of 320 V. Its pitch is 5.08 mm. This is a 1-row connector. This device has a maximum current rating of 12 A. 1826364 is housed in polyamide. It uses the screw termination method. Its wire is 12-24 AWG. This product is 50.8 mm long, 15.5 mm tall and 25.6 mm deep.

Allied Electronics:
Conn; Term Blk; Plug; Screw; 10; 5.08 mm; 30-12 AWG; 10 A; 300 V; PA

Verical:
Conn Terminal Blocks F 10 POS 5.08mm Screw Cable Mount 12A

Online Components:
Conn Terminal Block F 10 POS 5.08mm Screw Cable Mount 12A

Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
