1858044

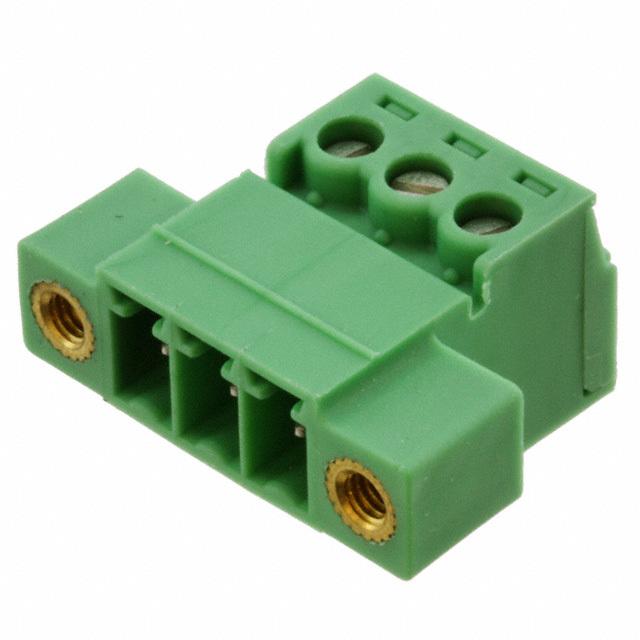

Conn Terminal Block M 3POS 3.81mm Screw RA Panel Mount 8A

Conn Terminal Block F 3 POS 3.81mm Screw RA Panel Mount 8A

欧时:
IMC 1,5/ 3-STGF-3,81

得捷:
TERM BLOCK PLUG 3POS STR 3.81MM

贸泽:
Pluggable Terminal Blocks 3 Pos 3.81mm Invert Plug 28-16AWG Screw

艾睿:
Join your electrical circuits and ensure strong connections with this 1858044 PCB terminal block from Phoenix Contact. This F connector has 3 contacts that are plated with tin. It has a female type gender. It has a right angle body orientation. Its pitch is 3.81 mm. It has a maximum voltage rating of 160 V. This is a 1-row connector. This device has a maximum current rating of 8 A. 1858044 is housed in polyamide. This product is 21.82 mm long, 11.1 mm tall and 17.9 mm deep. It uses the screw termination method. Its wire is 16-28 AWG.

Allied Electronics:
MINI COMBICON IMC Series 3.81mm Pitch Straight Pluggable Trm Blk; Inverted Plug

Verical:
Plug component, nominal current: 8 A, rated voltage: 160 V, pitch: 3.81 mm, no. of positions: 3, type of conne

MASTER:
Conn Terminal Block M 3 POS 3.81mm Screw RA Panel Mount 8A

Online Components:
Conn Terminal Block M 3 POS 3.81mm Screw RA Panel Mount 8A

Electro Sonic:
PCB connector - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
