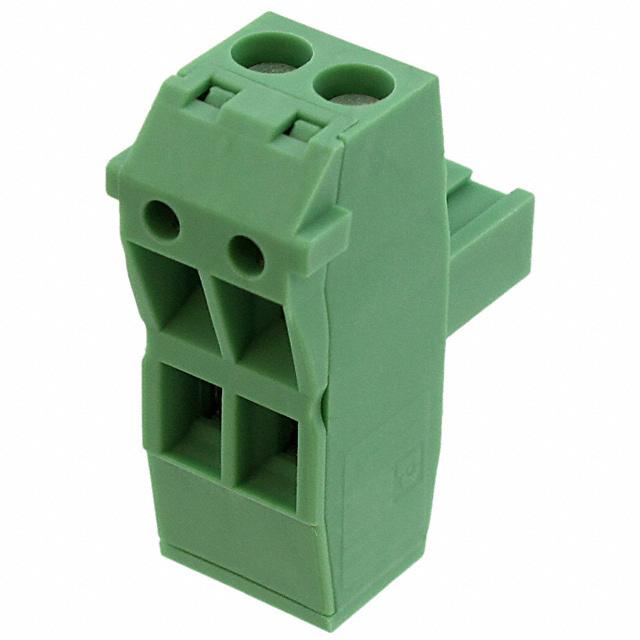

Conn Terminal Block F 2POS 5.08mm Screw ST Cable Mount 12A
2 针位端子块 插头,母插口 0.200"(5.08mm) - 180° 自由悬挂
得捷:
TERM BLOCK PLUG 2POS STR 5.08MM
贸泽:
Pluggable Terminal Blocks 2 Pos 5.08mm pitch Plug 24-12 AWG Screw
艾睿:
Joining multiple circuits is easy with this 1853010 PCB terminal block from Phoenix Contact. This F connector has 2 contacts that are plated with tin. It has a female type gender. It has a maximum voltage rating of 320 V. It has a straight body orientation. This is a 1-row connector. Its pitch is 5.08 mm. 1853010 is housed in polyamide. This device has a maximum current rating of 12 A. It uses the screw termination method. This product is 12.16 mm long, 28.9 mm tall and 21.5 mm deep. Its wire is 12-24 AWG.
Allied Electronics:
COMBICON TMSTB Series 5.08mm Pitch Straight Pluggable Trm Blk, Plug w/ Screw Term
Verical:
Conn Terminal Blocks F 2 POS 5.08mm Screw ST Cable Mount 12A
Online Components:
Conn Terminal Block F 2 POS 5.08mm Screw ST Cable Mount 12A
Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1853010 Phoenix 菲尼克斯 | 当前型号 | 当前型号 |
1853104 菲尼克斯 | 完全替代 | 1853010和1853104的区别 |
