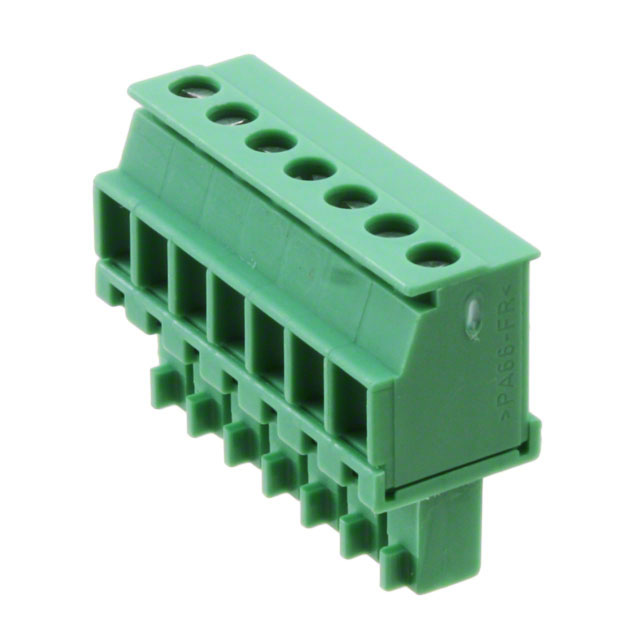

间距3.81 7位 插头 8A 160V 螺钉式 配线28-16AWG0.14-1.5mm²
针位端子块
得捷:
TERM BLOCK PLUG 7POS 3.81MM
艾睿:
This 1827172 PCB terminal block from Phoenix Contact will join multiple circuits by connecting to the bare wire. This F connector has 7 contacts that are plated with tin. It has a maximum voltage rating of 160 V@IEC|300V@UL. Its pitch is 3.81 mm. This is a 1-row connector. It has a female type gender. It has a straight body orientation. 1827172 is housed in polyamide. This device has a maximum current rating of 8 A. It uses the screw termination method. Its wire is 16-28@IEC|14-30@UL AWG. This product is 47.46 mm long, 19.1 mm tall and 10.4 mm deep.
Allied Electronics:
Conn; Term Blk; Plug; Screw; 7; 3.81 mm; 30-14 AWG; 8 A; 300 V; PA; M2
Verical:
Conn Terminal Blocks F 7 POS 3.81mm Screw ST Cable Mount 8A
MASTER:
PCB connector - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 7 - pitch: 3.81 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin
Online Components:
Conn Terminal Block F 7 POS 3.81mm Screw ST Cable Mount 8A
Electro Sonic:
PCB connector - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
触点数 7
线规 14AWG ~ 30AWG
触点电镀 Tin
额定电压DC 160 V
额定电流 8 A
排数 1
电路数 7
易燃性等级 UL 94 V-0
针脚数 7
安装角度 180 °
额定电流Max 8 A
额定电压 300 V
工作电压Max 160 V
安装方式 Screw
封装 无
引脚间距 3.81 mm
长度 27.5 mm
宽度 22.9 mm
高度 19.1 mm
封装 无
引脚间距 3.81 mm
外壳颜色 Green
颜色 Green
绝缘材质 Nylon
外壳材质 Nylon
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536694040
