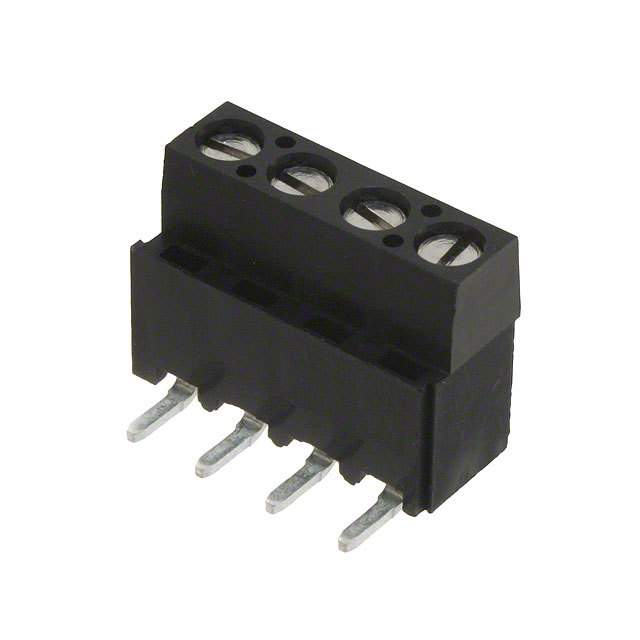

1546073-4

Conn Terminal Block 4POS 5.08mm Solder RA Thru-Hole

4 POS 5.08MM TERMI-BLOK

Product Highlights

Connector

Connector Type = Wire Receptacle

Housing Color = Black

Not Side Stackable

Without Screw Flange

得捷:
TERM BLK 4POS TOP ENT 5.08MM PCB

艾睿:
Say goodbye to wires becoming undone by using this eurostyle block 1546073-4 PCB terminal block developed by TE Connectivity. It has a maximum voltage rating of 250 VAC. This is a 1-row connector. Its pitch is 5.08 mm. It has a right angle body orientation. 1546073-4 is housed in polyamide 6/6. Its wire is 12-30 AWG. This product is 20.32 mm long, 9 mm tall and 15.5 mm deep. It uses the solder termination method.

安富利:
Conn Terminal Block 4 POS 5.08mm Solder RA Thru-Hole

Chip1Stop:
Conn Terminal Block 4 POS 5.08mm Solder RA Thru-Hole

Verical:
Conn Eurostyle Block HDR 4 POS 5.08mm Solder RA Thru-Hole Box

Newark:
# AMP - TE CONNECTIVITY  1546073-4  4 POS 5.08MM TERMI-BLOK New

MASTER:
TERMINAL BLOCK PCB MOUNT TOP ENTRY WIRE, STACKING W/INTERLOCK, 5.08mm PITCH

Powell:
Terminal Block Connectors

Online Components:
4 POS 5.08MM TERMI-BLOK

Electro Sonic:
4 POS 5.08MM TERMI-BLOK
