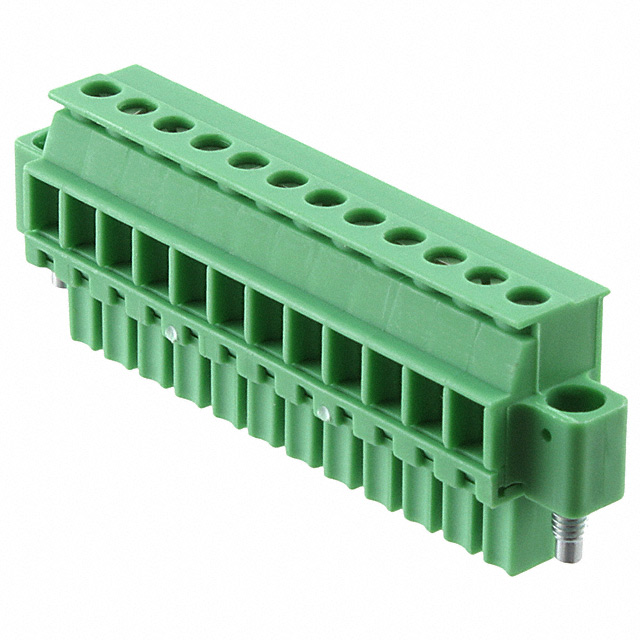

Phoenix Contact MINI COMBICON MCVW 系列 3.81mm 节距 12 路 母 绿色 插头 1828595, 螺钉端接
Conn Terminal Block F 12 POS 3.81mm Screw ST Panel Mount 8A
得捷:
TERM BLOCK PLUG 12POS 3.81MM
欧时:
Phoenix Contact MINI COMBICON MCVW 系列 3.81mm 节距 12 路 母 绿色 插头 1828595, 螺钉端接
艾睿:
This 1828595 PCB terminal block manufactured from Phoenix Contact will bridge different sections of wires together. This F connector has 12 contacts that are plated with tin. It has a female type gender. Its pitch is 3.81 mm. It has a maximum voltage rating of 160 V. This is a 1-row connector. It has a straight body orientation. 1828595 is housed in polyamide. This device has a maximum current rating of 8 A. This product is 56.11 mm long, 19.1 mm tall and 10.4 mm deep. It uses the screw termination method. Its wire is 16-28 AWG.
Verical:
Plug component, nominal current: 8 A, rated voltage: 160 V, pitch: 3.81 mm, no. of positions: 12, type of conn
MASTER:
PCB connector - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 12 - pitch: 3.81 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin
Online Components:
Conn Terminal Block F 12 POS 3.81mm Screw ST Panel Mount 8A
Electro Sonic:
PCB connector - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
