1375793-1

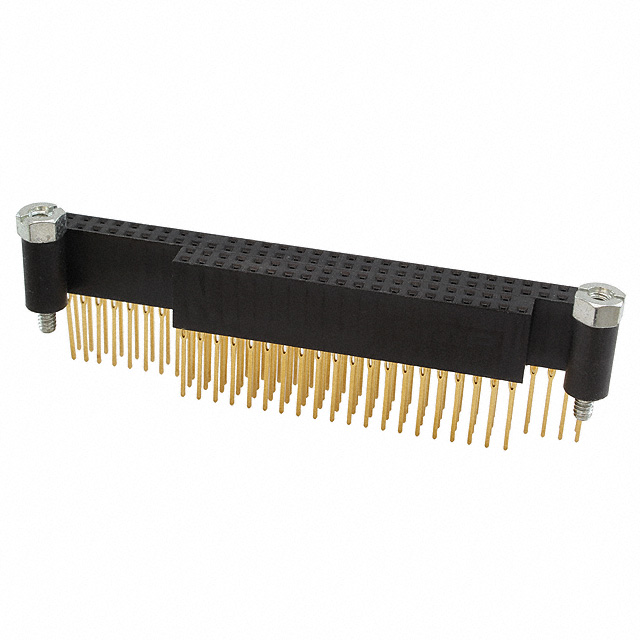

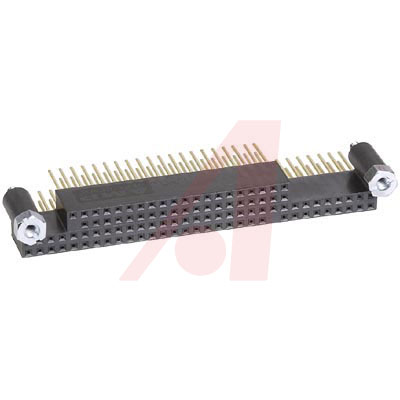

Conn PC/104 and PC/104 Plus Connector RCP 104POS 2.54mm Press Fit ST Thru-Hole

M Series Pin & Socket Connectors, 104 Positions

** Material and Finish:**

** Housing:** High temperature, glass filled nylon, black. ** Contacts: ** Phosphor bronze, 0.000381 0.000015 min. Gold on mating receptacle end, 0.000130 0.000005 min. Gold on remainder, all over 0.001270 0.0005 nickel stack-through, 0.000381 0.00015 min. Gold on mating receptacle end, 0.00254 0.0001 bright tin-lead on remainder, all over 0.001270 0.00005 nickel non-stackthrough.** Screwlocks:** Steel, clear chromate over zinc.

** Product Facts**

* Unitized PC/104 Connector Assembly-Eliminates Two Piece 64-Pin and 40-Pin Configuration

* Integral Board Spaces with Captive Hardware

* “Flat-Rock” Insertable

* Fully Compliant with PC104 and PC104-Plus Standards
