1375796-2

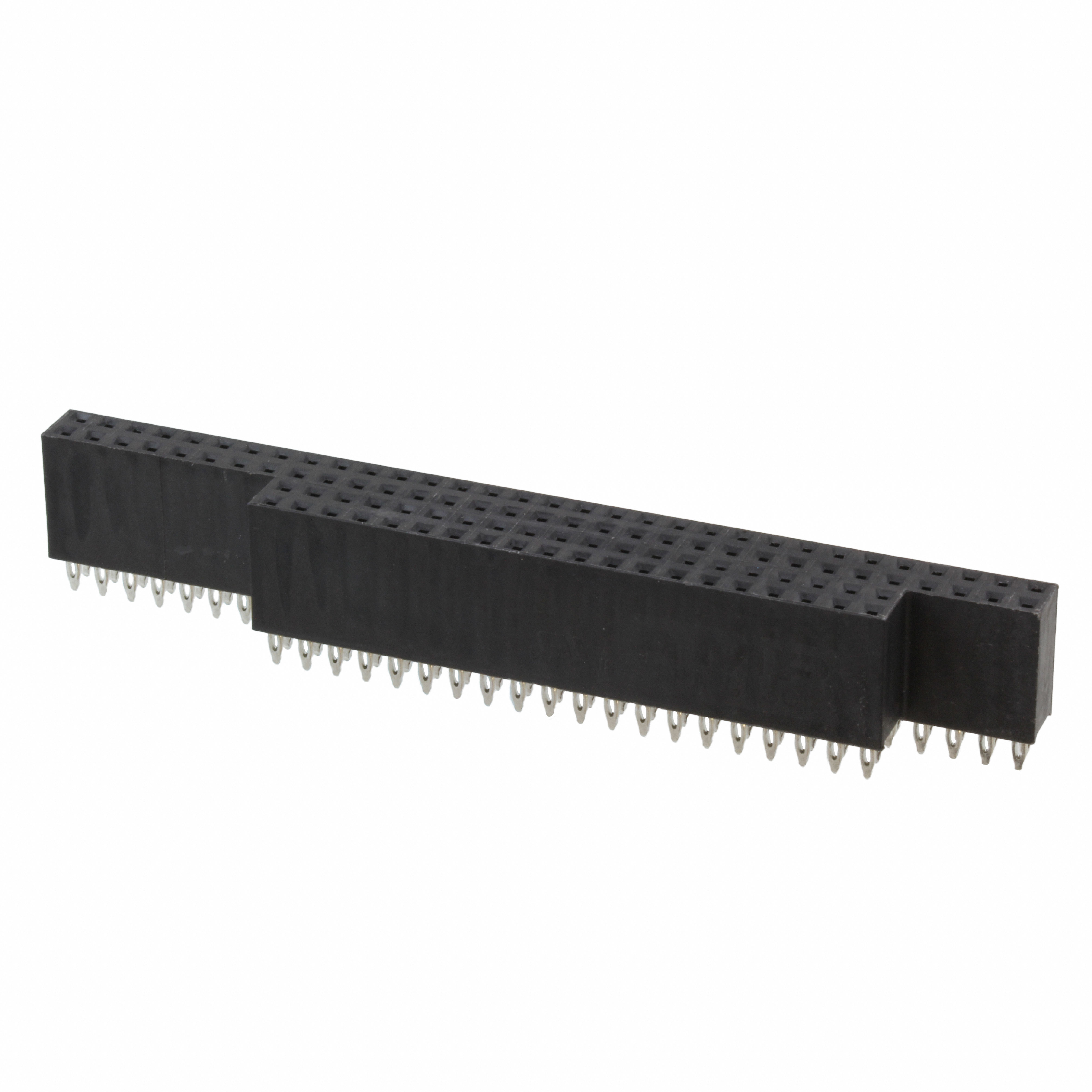

Conn PC/104 and PC/104 Plus Connector RCP 104POS 2.54mm Press Fit ST Thru-Hole

104 非叠通式，无标记（PC/104） 通孔 黑色 PC/104

得捷:
CONN NON-STKTHRU PC/104 104P PCB

艾睿:
Safety is an important concern when designing electronic devices. TE Connectivity&s;s pc/104 and pc/104 plus connector 1375796-2 header connector helps protect your equipment from accidental shortages. This RCP connector&s;s 104 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a receptacle type gender. Its pitch is 2.54 mm. This is a 4-row connector. It has a straight body orientation. This device has a maximum current rating of 3 A/contact. It uses the press fit termination method. 1375796-2 is housed in black nylon. This product is 81.06 mm long, 11.05 mm tall and 9.9 mm deep. This connector has an operating temperature of -55 to 105 °C.

安富利:
Conn PC/104 and PC/104 Plus Connector RCP 104 POS 2.54mm Press Fit ST Thru-Hole

Verical:
Conn PC/104 and PC/104 Plus Connector RCP 104 POS 2.54mm Press Fit ST Thru-Hole

Powell:
PC/104 and PC/104 Plus

Online Components:
PC104 ASY UNKEYED

Electro Sonic:
PC104 ASY UNKEYED
