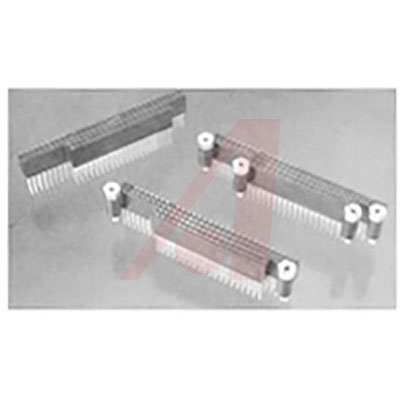

1375796-3图片3
1375796-3图片4
1375796-3图片5

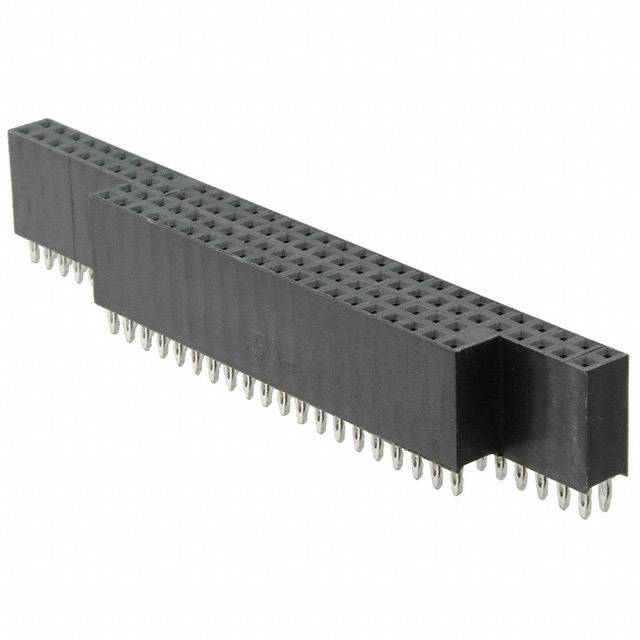

1375796-3图片6
1375796-3图片7
1375796-3概述

AMP FROM TE CONNECTIVITY  1375796-3  连接器, PCB, 102路, 0.1""节距, 孔型

**2.54mm PC/104 Range Receptacles**

This range of TE Connectivity Receptacles are fully compliant with the PC104 and PC104-Plus standards. These PC/104 and PC/104-Plus Receptacles feature a one piece design.


得捷:
CONN NON-STKTHRU PC/104 104P PCB


e络盟:
AMP FROM TE CONNECTIVITY  1375796-3  连接器, PCB, 102路, 0.1""节距, 孔型


Allied Electronics:
Connector; Non-Stackthrough; 104; 0.1 in.; B-10, C-19; Press Fit PCB Mount


安富利:
Conn PC/104 and PC/104 Plus Connector RCP 104 POS 2.54mm Press Fit ST Thru-Hole


Chip1Stop:
Conn PC/104 and PC/104 Plus Connector RCP 104 POS 2.54mm Press Fit ST Thru-Hole


Newark:
# AMP - TE CONNECTIVITY  1375796-3  Board-To-Board Connector, 2.54 mm, 102 Contacts, Receptacle, AMPMODU PC/104 Series, Press Fit


Powell:
PC/104 and PC/104 Plus


1375796-3中文资料参数规格
技术参数

触点数 102

极性 Female

触点电镀 Gold

额定电流 3 A

绝缘电阻 1.00 GΩ

排数 4

易燃性等级 UL 94 V-0

针脚数 104

封装参数

安装方式 Through Hole

引脚间距 2.54 mm

外形尺寸

长度 81.06 mm

宽度 9.9 mm

高度 11.05 mm

引脚间距 2.54 mm

物理参数

外壳颜色 Black

颜色 Black

触点材质 Phosphor Bronze

工作温度 -55℃ ~ 105℃

外壳材质 Nylon

其他

产品生命周期 Active

包装方式 Tray

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant
