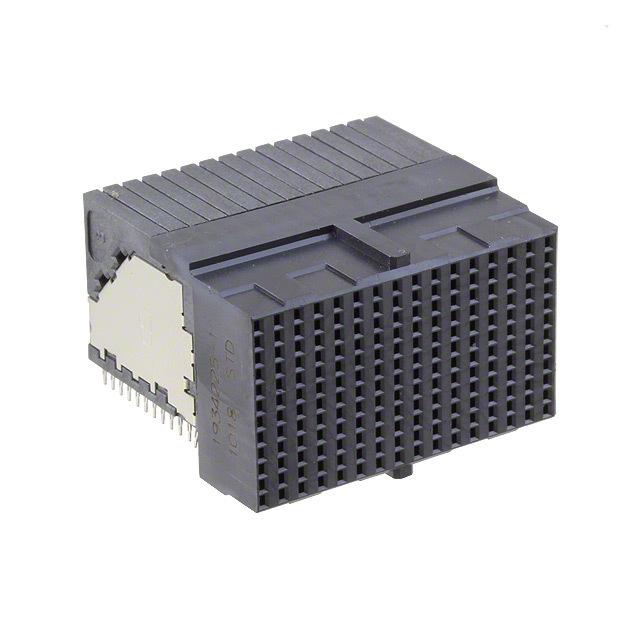

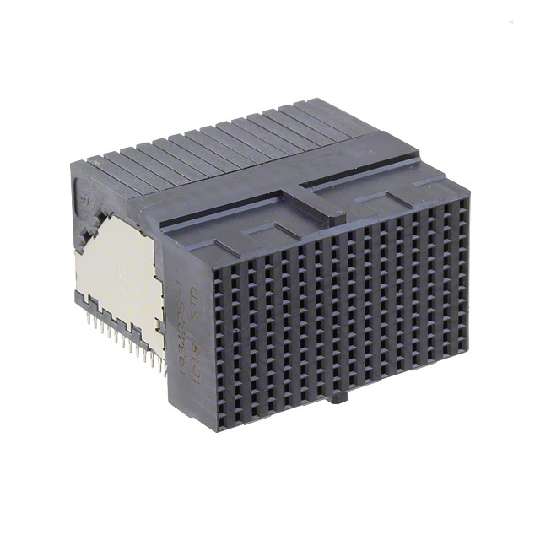

1934225-1

Conn Backplane RCP 192POS 1.9mm Press Fit RA Thru-Hole

192 插座，母型插口 板边缘，通孔，直角 黑色 高速度

得捷:
CONN RCPT HD 192POS EDGE MNT

贸泽:
High Speed / Modular Connectors Recpt 4 Pair 16 Col

艾睿:
TE Connectivity&s;s 1934225-1 backplane connector will transfer signals at a faster rate than other connector types. This RCP connector&s;s 192 contacts that are made out of copper alloy and plated with gold over nickel. Its pitch is 1.9 mm. It has a receptacle type gender. This is a 12-row connector. It has a right angle body orientation. It has a maximum voltage rating of 250 VAC. This device has a maximum current rating of 0.5 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the press fit termination method. This backplane connector has an operating temperature of -65 to 90 °C. This product is 30.55 mm long, 20.2 mm tall and 27.61 mm deep. 1934225-1 is housed in black liquid crystal polymer.

安富利:
Conn Backplane RCP 192 POS 1.9mm Press Fit RA Thru-Hole

Chip1Stop:
Conn Backplane RCP 192 POS 1.9mm Press Fit RA Thru-Hole

Powell:
Hard Metric Connectors Recpt 4 Pair 16 Col
