191-2801-137

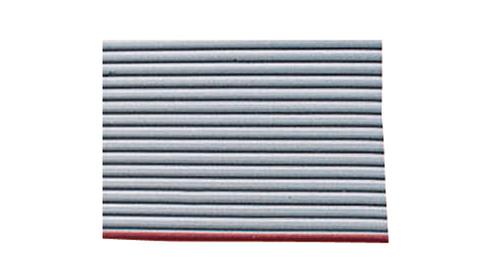

AMPHENOL SPECTRA-STRIP  191-2801-137  带状电缆, Spectra Zip® 平面, 灰色, 37 芯, 28 AWG, 0.072 mm², 100 ft, 30.5 m

The is a 37-core unshielded Spectra-Zip® Planar Cable with tinned copper conductor and a flame-retardant grey PVC insulator. It offers a balanced combination of economy, reliable performance, weight and space savings, controlled electrical characteristics and termination for general-purpose interconnection in electronic products from calculators and automobiles to computers and switching networks. The insulation is extruded around the conductors so that the cable has a double contour to allow for mounting IDC connectors on either surface of the cable. A tear feature built into the cable allows easy, uniform breakouts without rupturing the insulation.

.

Precise spacing for controlled electrical characteristics

.

Double contour allows termination from either side of cable

.

Easy conductor separation for circuit routing

.

105R Impedance

.

14pf/ft at 1MHz Nominal capacitance

.

1.5ns/ft Nominal propagation delay
