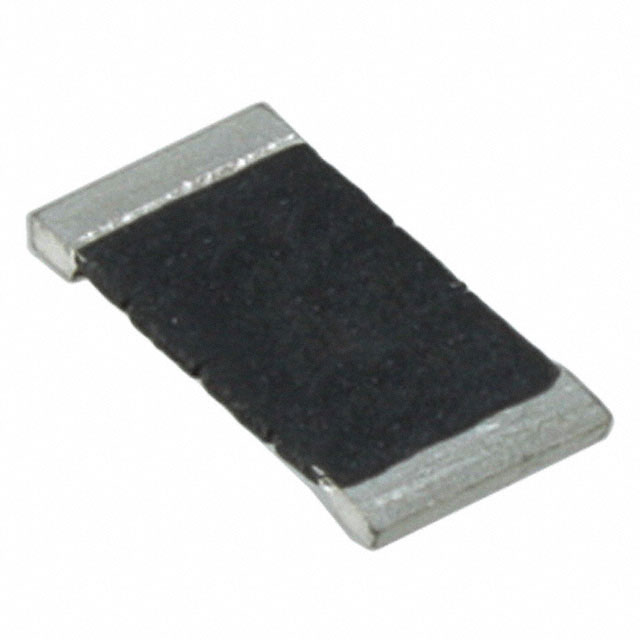

1625827-5图片1
1625827-5图片2
1625827-5图片3
1625827-5图片4
1625827-5图片5
1625827-5图片6
1625827-5图片7
1625827-5图片8
1625827-5图片9
1625827-5概述

Res Metal Foil 2512 0.01Ω 1% 1W ±75ppm/℃ Molded SMD T/R

TL3A R01 1%

Product Highlights

TL Series

Resistance Selection = <1K ?

Resistance = .01 ?

Power Rating = 1.00 W

Tolerance = 1 %


艾睿:
This is a 1625827-5 fixed single surface-mount resistor from TE Connectivity. This product has a resistance value of 10m Ohm. This durable part has a power rating of 1 W. It is also complete with current sensing technology. Its temperature coefficient is ±75 ppm/°C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This part has an operating temperature of -65 to 170 °C. This product is 6.4 mm long, 0.6 mm tall and 3.2 mm deep. It has a tolerance of 1%. This device is made with metal foil technology.


Verical:
Res Metal Foil 2512 0.01 Ohm 1% 1W ±75ppm/C Epoxy Pad SMD T/R


MASTER:
TL3A R01 1%


Online Components:
TL3A R01 1%


Electro Sonic:
TL3A R01 1%


1625827-5中文资料参数规格
技术参数

容差 ±1 %

额定功率 1 W

电阻 10 mΩ

工作温度Max 170 ℃

工作温度Min -65 ℃

封装参数

封装公制 6432

封装 2512

外形尺寸

长度 6.4 mm

宽度 3.2 mm

高度 0.6 mm

封装公制 6432

封装 2512

物理参数

工作温度 -65℃ ~ 170℃

温度系数 ±75 ppm/℃

其他

产品生命周期 Active

包装方式 Cut Tape CT

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8533210030

数据手册

在线购买1625827-5
型号: 1625827-5
制造商: TE Connectivity 泰科
描述:Res Metal Foil 2512 0.01Ω 1% 1W ±75ppm/℃ Molded SMD T/R
