1650780000

WEIDMULLER  1650780000  接插件, 孔型 16芯

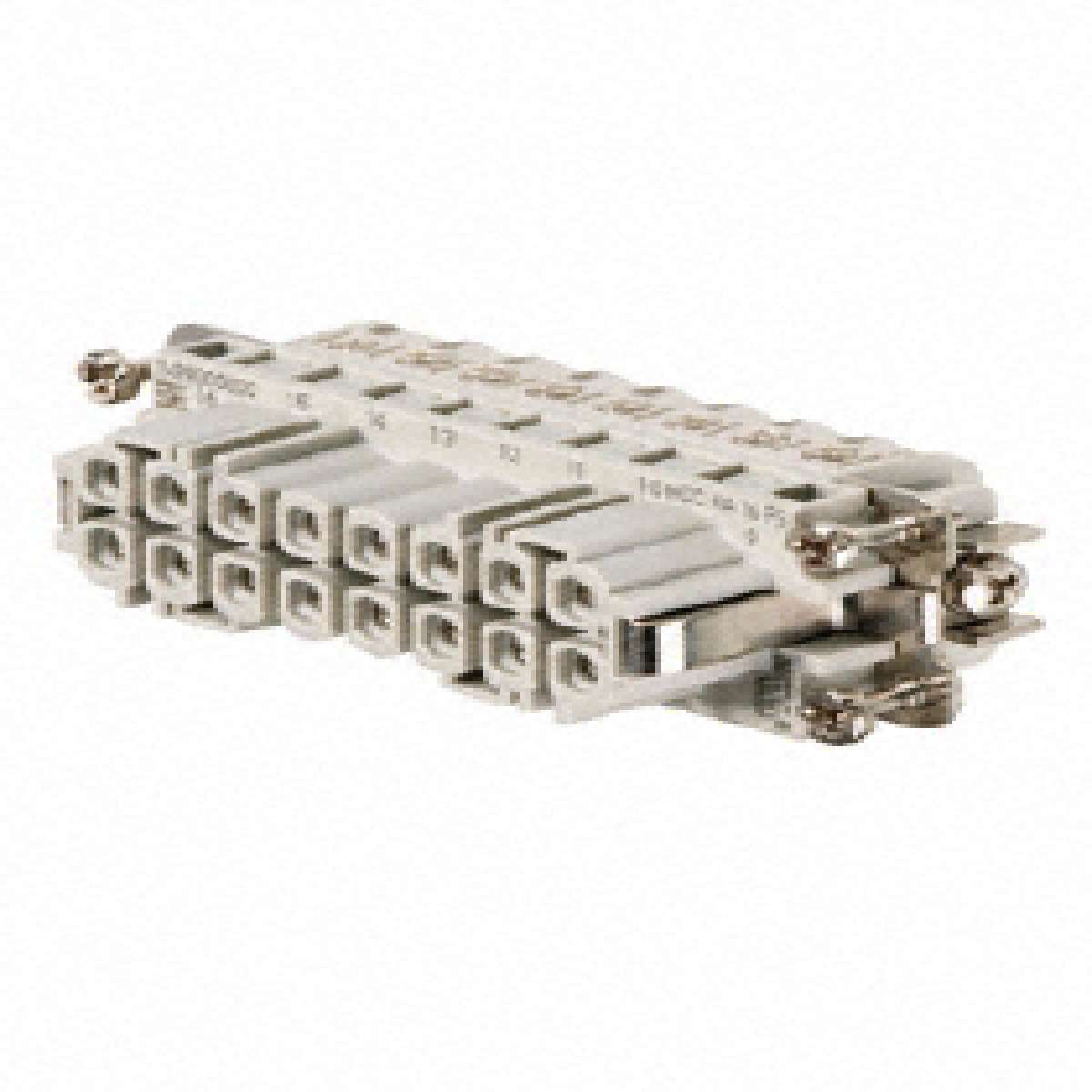

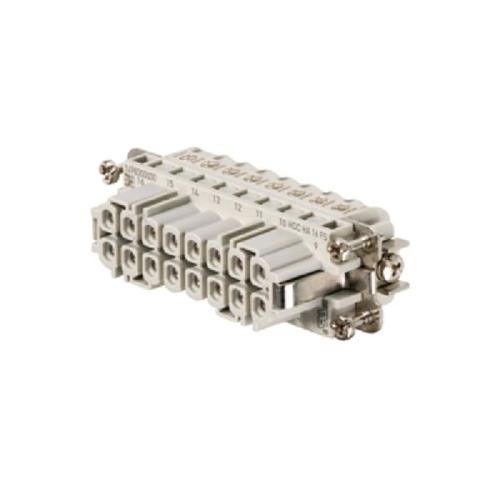

The is a 16-position heavy-duty Female Insert with screw connection. The HDC series insert made of PC glass-fiber reinforced UL-listed and railway-certified. It is suitable for use with HA series rectangular power connectors.

.

2.5mm² Conductor cross-section

.

* 10¹⁰R Insulation resistance

.

>=500 Plugging cycles silver

.

16A Rated current DIN EN 61984

.

4kV Rated impulse voltage DIN EN 61984

.

250V Rated voltage DIN EN 61984

.

UL94V-0 Flammability rating

.

-40 to 125°C Limit temperature range
