1852820

Phoenix Contact VC 系列附件附件专门设计用于与 Phoenix Contact VC 系列一起使用### Phoenix Contact 附件

Contact VC 系列附件

附件专门设计用于与 Phoenix Contact VC 系列一起使用

### Phoenix Contact 附件

得捷:
INSERT FEMALE 8POS SCREW

欧时:
VC-TFS 8

艾睿:

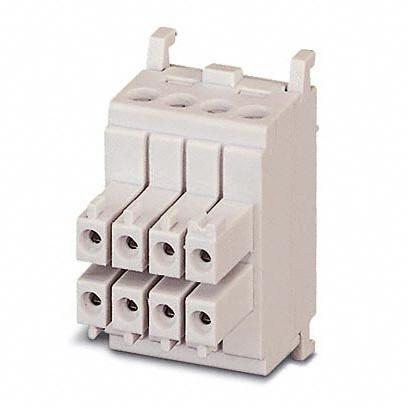

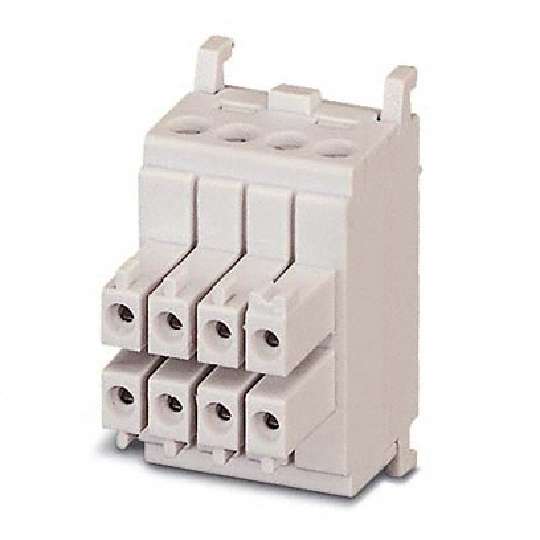

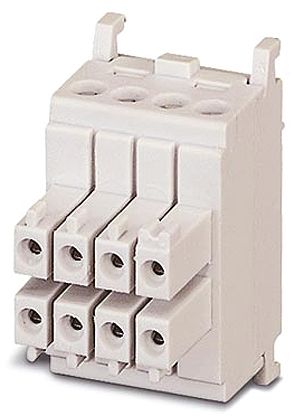

Know that you will have strong connections between circuits when you use Phoenix Contact&s;s 1852820 PCB terminal block. This F connector&s;s 8 contacts that are made out of brass and plated with tin. It has a maximum voltage rating of 160 V. Its pitch is 3.5 mm. It has a female type gender. It has a right angle body orientation. This is a 2-row connector. This device has a maximum current rating of 10 A. 1852820 is housed in polyamide. It uses the screw termination method. This quick disconnect terminal has an operating temperature of -40 to 100 °C. This product is 15 mm long, 26.6 mm tall and 21.7 mm deep. Its wire is 16-28 AWG.

Verical:
Contact insert module, for sleeve frames, with screw connection, 8-pos., 160 V / 10 A

MASTER:
Contact insert module - for sleeve frames - with screw connection - 8-pos. - 160 V / 10 A

Online Components:
Conn Terminal Block F 8 POS 3.5mm Screw RA Cable Mount 10A

Electro Sonic:
Contact insert module - for sleeve frames - with screw connection - 8-pos. - 160 V / 10 A
