1325-5概述

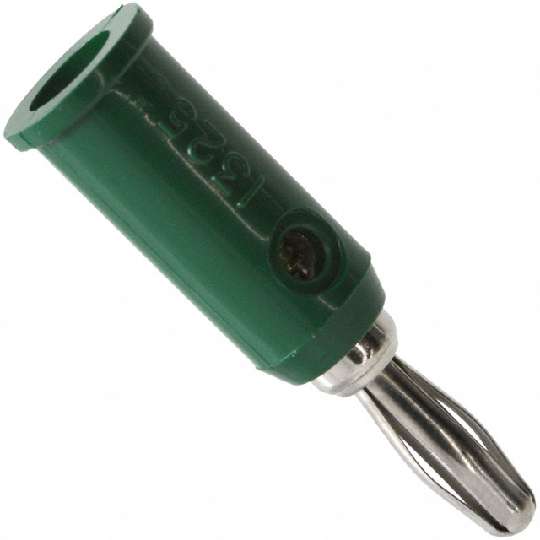

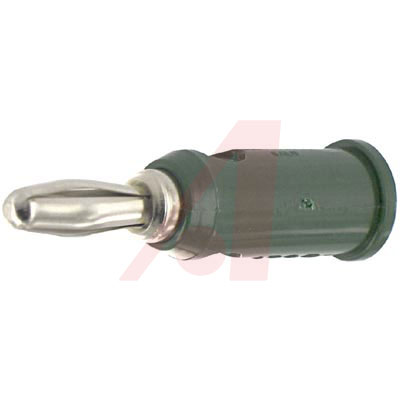

POMONA  1325-5  香蕉插头, 可堆叠, 15A, 螺丝, 绿色

香蕉插头,可叠加 标准香蕉式 非焊接 绿色


得捷:
CONN BANANA PLUG STACK SLDRLESS


立创商城:
1325-5


贸泽:
测试插头和测试插座 BANANA PLUG GREEN


e络盟:
自行动手, 非焊接, 可堆叠, 香蕉连接器, 公, 10件装, 绿色


艾睿:
This banana 1325-5 test terminal block from Pomona will connect odd wires together for easy adaptation. This PL connector&s;s a single contact that is made out of brass and plated with nickel. It has a straight body orientation. It has a plug type gender. This connector has a single port. This device has a maximum current rating of 15 A. This test terminal block has a maximum operating temperature of 50 °C. Its wire is 18-22 AWG. It uses the screw termination method. 1325-5 is housed in green acrylonitrile butadiene styrene. This product is 39.36 mm long.


Allied Electronics:
Banana Jack; Banana Jack; 15 A; Green; Beryllium Copper; 5000 Vrms Max.


Chip1Stop:
Conn Banana PL 1 POS Screw ST Cable Mount 1 Port


Verical:
Conn Banana Plug PL 1 POS Screw ST Cable Mount 1 Port


Newark:
# POMONA  1325-5  Do It Yourself Solderless Stackup Banana Plug, 10 per Package, Green


MASTER:
Conn Banana PL 1 POS Screw ST Cable Mount 1 Port


Online Components:
Conn Banana PL 1 POS Screw ST Cable Mount 1 Port


Electro Sonic:
Conn Banana PL 1 POS Screw ST Cable Mount 1 Port


1325-5中文资料参数规格
技术参数

触点数 1

极性 Male

线规 18AWG ~ 22AWG

触点电镀 Nickel

额定电压DC 5.00 kV

额定电流 15 A

额定电流Max 15 A

工作温度Max 122 ℉

额定电压 5 kV

封装参数

安装方式 Screw

封装 -

外形尺寸

长度 39.37 mm

高度 1.55 in

封装 -

物理参数

外壳颜色 Green

颜色 Green

触点材质 Beryllium Copper

绝缘材质 Polypropylene

工作温度 50 ℃

其他

产品生命周期 Active

包装方式 Bag

制造应用 电子设计, Research & Development, Calibration, Aerospace, Sound & Video, Test & Measurement, 计算机硬件, Electronics Design, Manufacturing, 声音和视频, Computer Hardware, Electrical, 电气, Instrumentation, 生产制造, 研究开发, 仪器仪表, 校准, 测试与测量, 航天

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

海关信息

ECCN代码 EAR99

HTS代码 8536694050

数据手册

在线购买1325-5
型号: 1325-5
制造商: Pomona Electronics
描述:POMONA  1325-5  香蕉插头, 可堆叠, 15A, 螺丝, 绿色
替代型号1325-5
型号/品牌 代替类型 替代型号对比

1325-5

Pomona Electronics

当前型号

当前型号

1325-4

Pomona Electronics

完全替代

1325-5和1325-4的区别

1325-0

Pomona Electronics

类似代替

1325-5和1325-0的区别

1325-2

Pomona Electronics

类似代替

1325-5和1325-2的区别
