1325-6概述

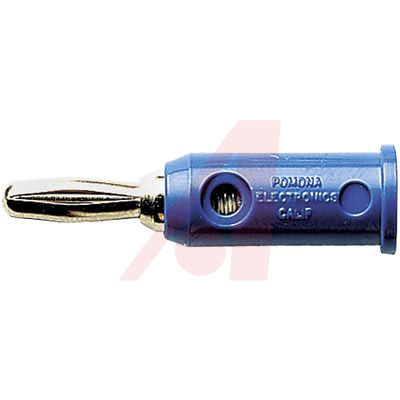

POMONA  1325-6  香蕉插头, 可堆叠, 15A, 螺丝, 蓝色

香蕉插头,可叠加 标准香蕉式 非焊接 蓝色


得捷:
CONN BANANA PLUG STACK SLDRLESS


立创商城:
1325-6


贸泽:
测试插头和测试插座 BANANA PLUG BLUE


e络盟:
自行动手, 非焊接, 可堆叠, 香蕉连接器, 公, 10件装, 蓝色


艾睿:
The easy-to-use banana 1325-6 test terminal block from Pomona makes it possible to test any abnormal connections your application may have. This PL connector&s;s a single contact that is made out of brass and plated with nickel. This connector has a single port. It has a straight body orientation. It has a plug type gender. This device has a maximum current rating of 15 A. This product is 39.36 mm long. 1325-6 is housed in blue acrylonitrile butadiene styrene. This test terminal block has a maximum operating temperature of 50 °C. It uses the screw termination method. Its wire is 18-22 AWG.


Allied Electronics:
Banana Jack; Banana Jack; 15 A; Blue; Beryllium Copper; 5000 Vrms Max.


Chip1Stop:
Conn Banana PL 1 POS Screw ST Cable Mount 1 Port


Verical:
Conn Banana Plug PL 1 POS Screw ST Cable Mount 1 Port


Newark:
# POMONA  1325-6  Do It Yourself Solderless Stackup Banana Plug, 10 per Package, Blue


MASTER:
Conn Banana PL 1 POS Screw ST Cable Mount 1 Port


Online Components:
Conn Banana PL 1 POS Screw ST Cable Mount 1 Port


Electro Sonic:
Conn Banana PL 1 POS Screw ST Cable Mount 1 Port


1325-6中文资料参数规格
技术参数

触点数 1

极性 Male

线规 18AWG ~ 22AWG

触点电镀 Nickel

额定电压DC 5.00 kV

额定电流 15 A

额定电流Max 15 A

工作温度Max 50 ℃

额定电压 5 kV

封装参数

安装方式 Screw

封装 -

外形尺寸

长度 39.37 mm

高度 1.55 in

封装 -

物理参数

外壳颜色 Blue

颜色 Blue

触点材质 Beryllium Copper

绝缘材质 Polypropylene

其他

产品生命周期 Active

包装方式 Bag

制造应用 Test & Measurement, 测试与测量, 仪器仪表, Calibration, 计算机硬件, 声音和视频, 航天, 校准, 电气, Electrical, Instrumentation, 研究开发, Sound & Video, 生产制造, 电子设计, Manufacturing, Electronics Design, Computer Hardware, Aerospace, Research & Development

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

海关信息

ECCN代码 EAR99

HTS代码 8536694050

数据手册

在线购买1325-6
型号: 1325-6
制造商: Pomona Electronics
描述:POMONA  1325-6  香蕉插头, 可堆叠, 15A, 螺丝, 蓝色
替代型号1325-6
型号/品牌 代替类型 替代型号对比

1325-6

Pomona Electronics

当前型号

当前型号

1325-0

Pomona Electronics

完全替代

1325-6和1325-0的区别

1325-2

Pomona Electronics

完全替代

1325-6和1325-2的区别
