108-0745-001

Conn Banana F 1POS Solder Lug ST Panel Mount 1Port

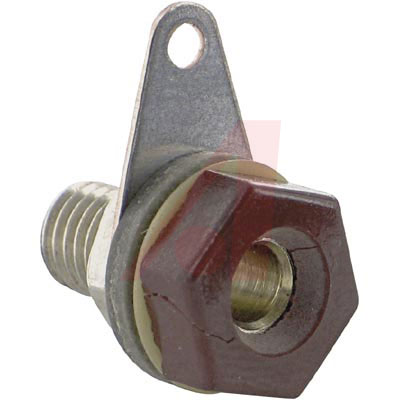

Banana Jack Insulated Pierced Lug Terminal

Brass body per QQ-B-626D. Plugs have nickel silver springs per QQ-C-585.

.

* Screw Type Plugs Fig. 1:** 108-0753, for standard jack; 0.125" panel thickness, 14-gauge wire: 15 A. ** Jacks Have Nickel Finish Fig. 2:** Type 108-0740, 0.375" panel thickness; 12-gauge wire; 15 A; pierced lug. ** Standard Insulated Jack Fig. 3** : Type 108-0745, 0.281" panel thickness; 12-gauge wire; 15 A; pierced lug; phenolic insulation.

Stamped tin plated solder terminal with hole for up to 12 ga. wire.
