1-558693-1

Conn IEEE 488 PL 50POS 2.16mm IDT RA Cable Mount 50 Terminal 1Port Tray

PLUG ASSY,50 POS,A SLOT,SYS 5

Product Highlights

Connector

Number of Positions = 50

Product Category = Connectors

Plug

Not Shielded

得捷:
CONN PLUG 50POS STR IDC

贸泽:
I/O Connectors PLUG 50P 24 AWG Red

艾睿:

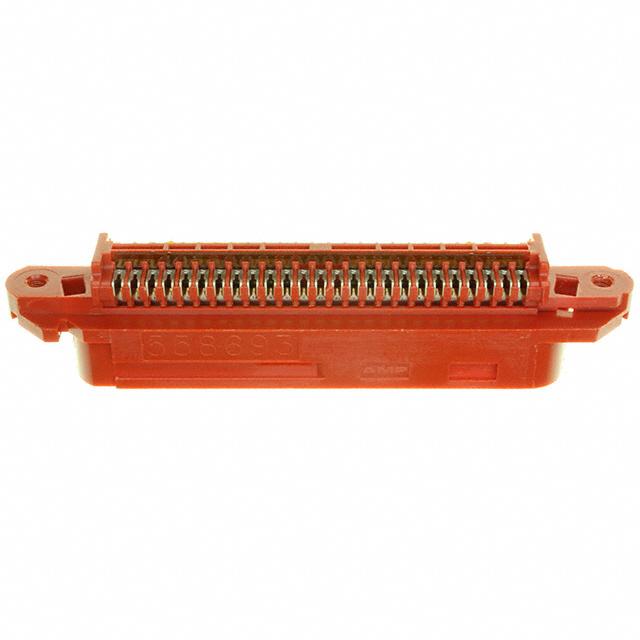

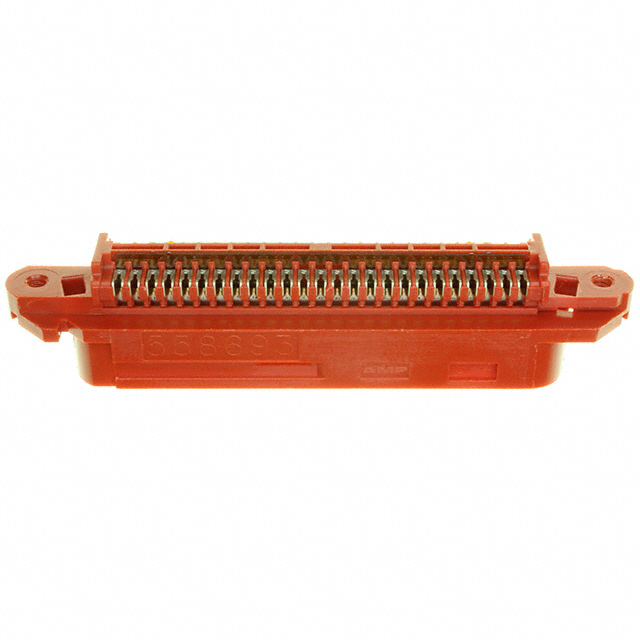

Using the ieee 488 1-558693-1 interface connector from TE Connectivity is easy to control your inputs and outputs for your circuit. This PL connector&s;s 50 contacts that are made out of phosphor bronze and plated with gold over palladium nickel. This connector has a single port. It has a maximum voltage rating of 150 VAC. It has a right angle body orientation. It has a plug type gender. Its pitch is 2.16 mm. 1-558693-1 is housed in polyphenylene oxide. This interface connector has an operating temperature range of -40 °C to 70 °C. Its 50 terminals use the idt termination method. This product is 83.32 mm long, 17.53 mm tall and 15.37 mm deep.

安富利:
Conn IEEE 488 PL 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Bulk

Chip1Stop:
Conn IEEE 488 PL 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Bulk

Newark:
# AMP - TE CONNECTIVITY  1-558693-1  I/O Connector, 50 Contacts, Plug, Micro D, IDC / IDT, Champ System 5 Series, Cable Mount

MASTER:
PLUG ASSEMBLY, 50 POSITION, A-SLOT, CHAMP SYSTEM 5

Powell:
2.16 [.085] IDC Connectors

Online Components:
PLUG ASSY,50 POS,A SLOT,SYS 5

Electro Sonic:
PLUG ASSY,50 POS,A SLOT,SYS 5
