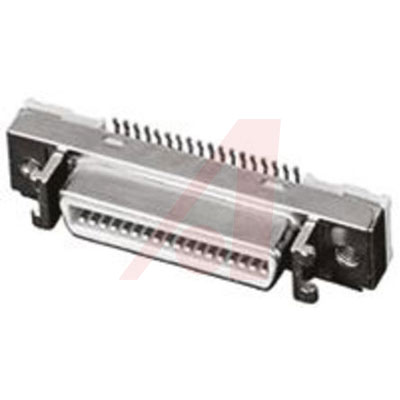

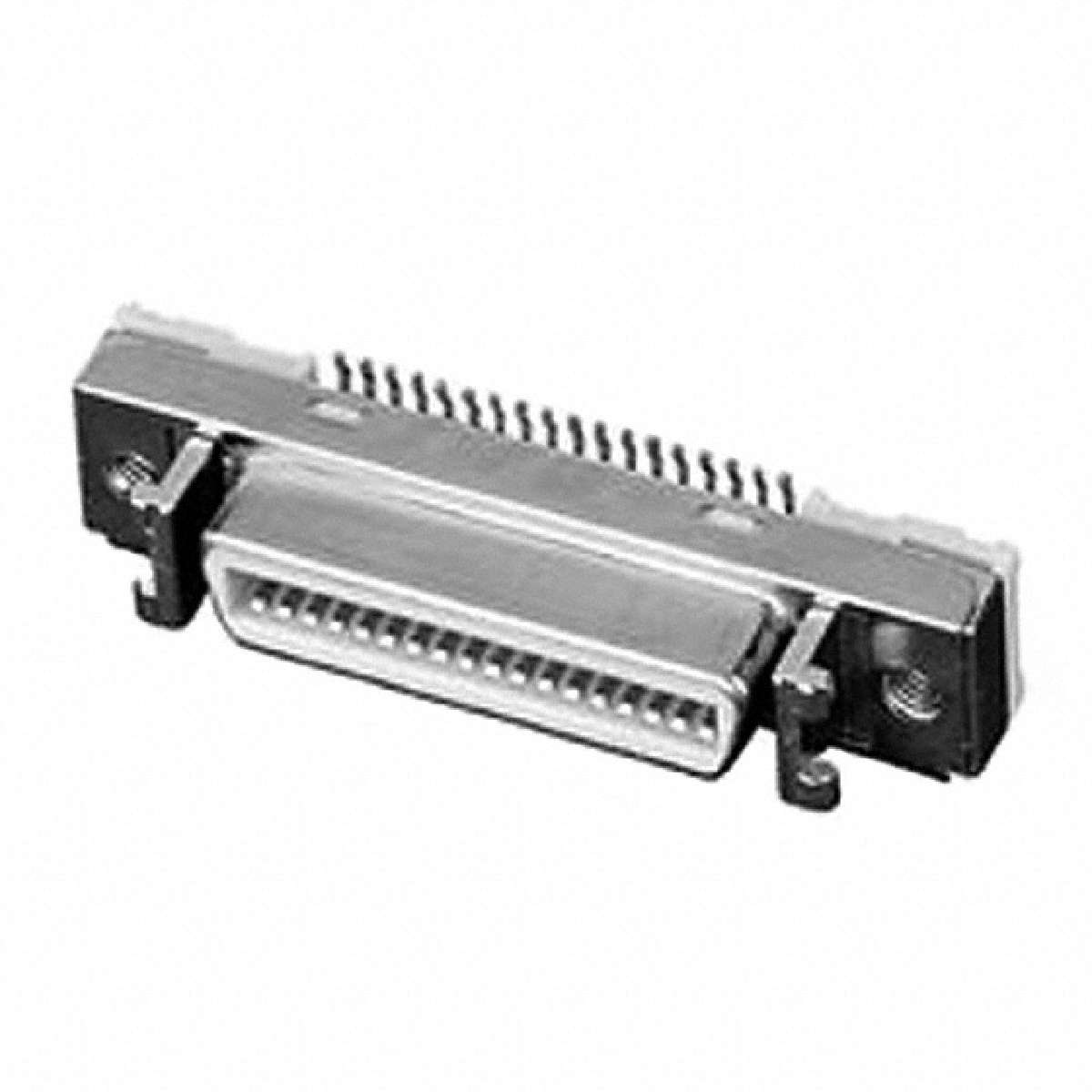

10236-2210PE

Conn Mini D Ribbon RCP 36POS 1.27mm Solder ST SMD 36 Terminal 1Port Box

Surface Mount Vertical Receptacles — Shielded

* Wiper-on-Wiper Contact for Reliable Repetitive Plugging

* Interface Latch Design for Connection Stability

* Vertical-IEEE 1284C Interface As a 36-Contact Connector

* 36-Position Used for IEEE 1284-C Interface

得捷:
CONN RCPT 36POS SMD SOLDER

艾睿:
Devices such as printers and scanners that run the Small Computer System Interface standards and protocols will require this mini d ribbon 10236-2210PE SCSI connector from 10236-2210PE in order to interface with each other. This RCP connector&s;s 36 contacts that are made out of copper alloy and plated with gold over nickel. It has a receptacle type gender. It has a straight body orientation. This connector has a single port. Its pitch is 1.27 mm. This device has a maximum current rating of 1 A. 10236-2210PE is housed in polychlorinated terphenyl. This SCSI connector has a minimum operating temperature of -55 °C and a maximum of 105 °C. This product is 43.56 mm long, 11 mm tall and 9.1 mm deep. Its 36 terminals use the solder termination method.

Allied Electronics:
Conn; D-Sub; Mini-D-Ribbon; Cable Socket; 36Pos; STR; 102Series; SMT; .050In.

Verical:
Conn Mini D Ribbon RCP 36 POS 1.27mm Solder ST SMD 36 Terminal 1 Port Box
