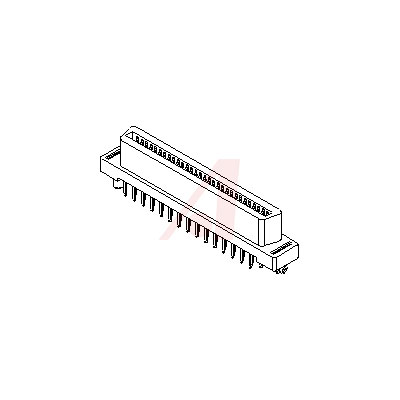

15-92-1060

Conn EBBI RCP 60POS 2.54mm Solder ST Thru-Hole 60 Terminal 1Port Tray

EBBI™ 50D

The EBBI 50D series meets the market demand for low-cost, unshielded, high density, leaf-style connectors. Several configurations are available including vertical, right angle and blind-mating to provide valuable design flexibility and expandability.

Leaf-style terminals are arranged in two rows on .050" spacing within a polarized "D"-shaped housing for rugged mechanical protection. Housings are made of high-temperature, UL 94V-0 thermoplastic. Terminals are plated with 30 micro-inches min. gold in the mating area for long term reliability and durability.

The IDT cable receptacle terminates to both .025" flat ribbon or laminated discrete-wire cable. A built-in polarizing key prevents mis-mating to the PCB card edge. The cable-gripping cover prevents cable pull-out and eliminates the need for an extra retention cover.
