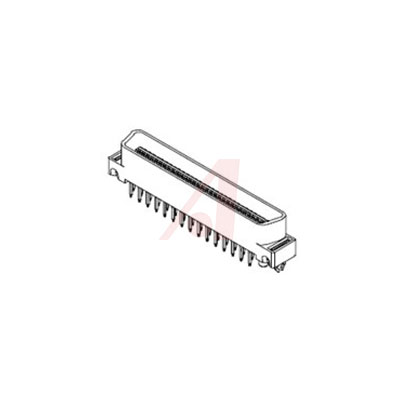

Conn EBBI PL 60POS 2.54mm Solder ST Thru-Hole 60 Terminal 1Port EBBI Tray
EBBI™ 50D
The EBBI 50D series meets the market demand for low-cost, unshielded, high density, leaf-style connectors. Several configurations are available including vertical, right angle and blind-mating to provide valuable design flexibility and expandability.
Leaf-style terminals are arranged in two rows on .050" spacing within a polarized "D"-shaped housing for rugged mechanical protection. Housings are made of high-temperature, UL 94V-0 thermoplastic. Terminals are plated with 30 micro-inches min. gold in the mating area for long term reliability and durability.
The IDT cable receptacle terminates to both .025" flat ribbon or laminated discrete-wire cable. A built-in polarizing key prevents mis-mating to the PCB card edge. The cable-gripping cover prevents cable pull-out and eliminates the need for an extra retention cover.
触点数 60
极性 Male
触点电镀 Gold
额定电压DC 30.0 V
额定电流 1.00 A
绝缘电阻 100 MΩ
排数 2
灼热丝测试标准 Non-Compliant
无卤素状态 Low Halogen
方向 Vertical
电路数 60
易燃性等级 UL 94 V-0
针脚数 60
拔插次数 2000
额定电流Max 1A/触头
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压Max 30 V
接触电阻Max 10 mΩ
安装方式 Through Hole
引脚间距 1.27 mm
长度 49.5 mm
宽度 7.00 mm
高度 9.2 mm
引脚间距 1.27 mm
外壳颜色 Black
颜色 Black
触点材质 Copper Alloy
工作温度 -40℃ ~ 105℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
