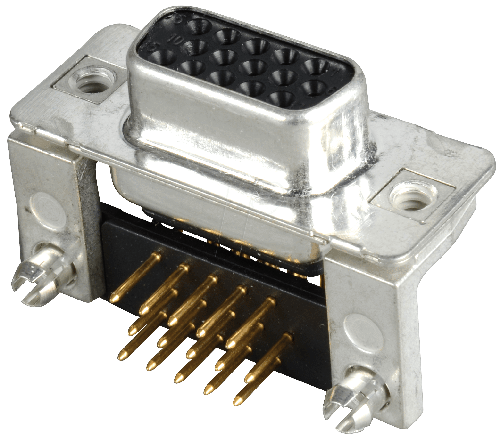

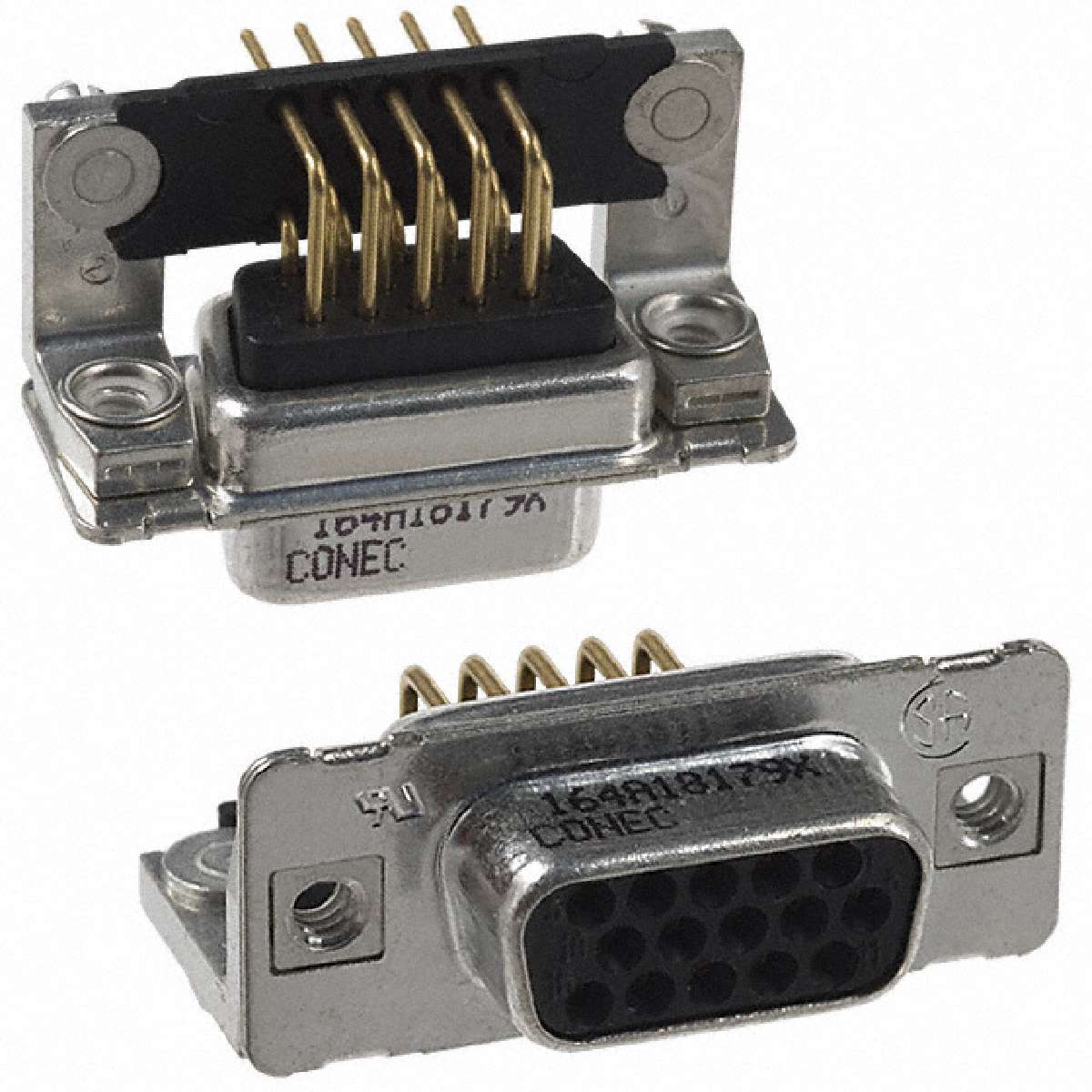

164A18179X

Conn High Density D-Sub SKT 15POS Solder RA Thru-Hole 15 Terminal 1Port

Be sure to set up proper communication between your serial connections with the high density d-sub DVI connector from . This socket type connector"s 15 contacts that are made out of copper alloy and plated with gold over nickel. This 3-row connector has a single port. It has a maximum voltage rating of 60 V. It has a right angle body orientation. This device has a maximum current rating of 3 A. 164A18179X is housed in polyester. This product is 12.93 mm tall. Its 15 terminals use the solder termination method. This DVI connector has an operating temperature of -25 to 105 °C.
