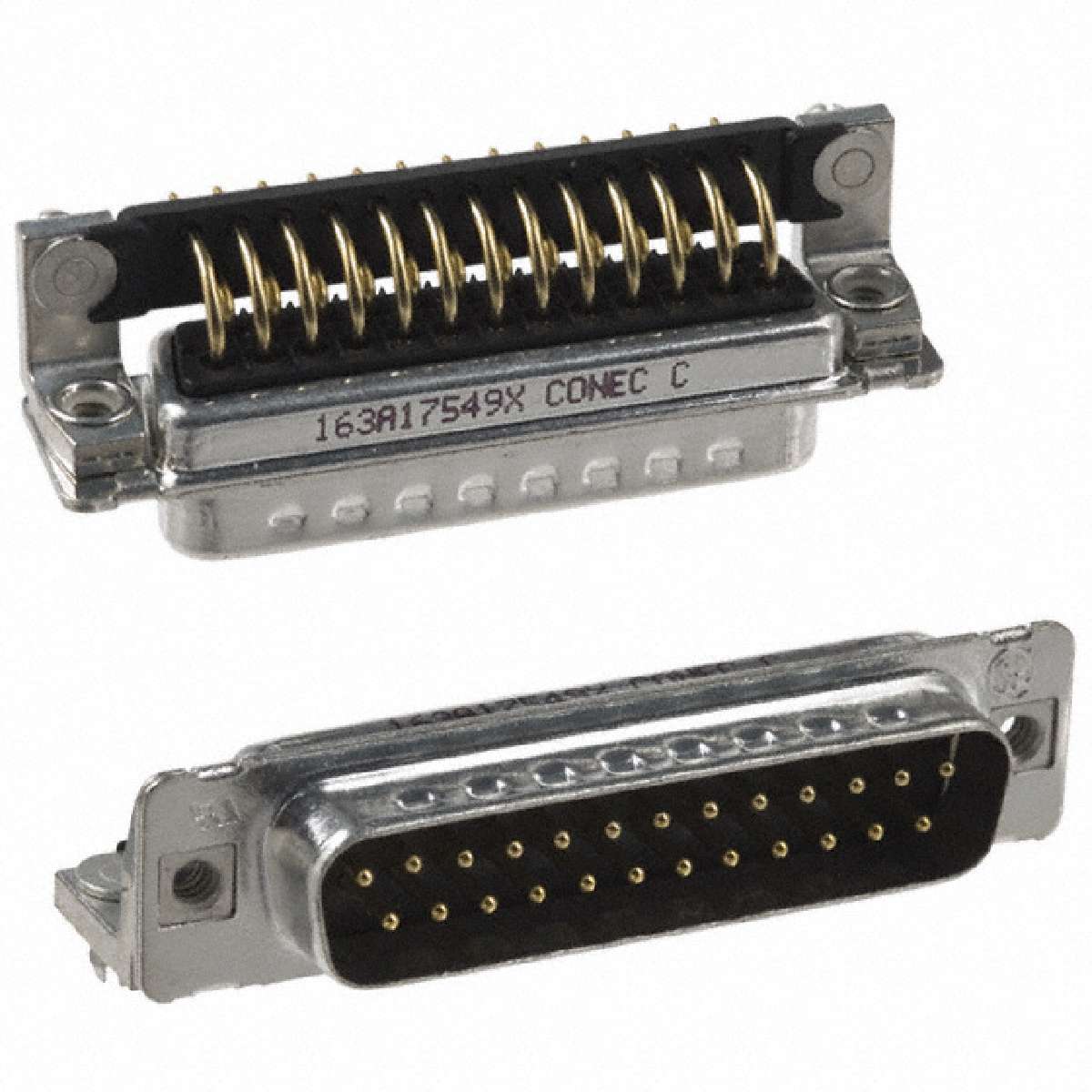

163A17549X

Conn D-Subminiature PIN 25POS Solder RA Thru-Hole 25 Terminal 1Port

25 Position D-Sub Plug, Male Pins Connector

欧时:
D Sub connector plug 25 position right a

得捷:
CONN D-SUB PLUG 25POS R/A SLDR

贸泽:
D-Sub Standard Connectors 25 POS SOLDER PIN ANGLED MALE THREADED

艾睿:
This 163A17549X DVI connector from Conec will make secure connections for all of your serial ports. This 2-row connector has a single port. It has a right angle body orientation. It has a maximum voltage rating of 125 V. 163A17549X is housed in polyester. This device has a maximum current rating of 7.5 A. Its 25 terminals use the solder termination method. This product is 53.42 mm long, 12.93 mm tall and 18.19 mm deep. This DVI connector has an operating temperature of -55 to 125 °C.

Chip1Stop:
Conn D-Subminiature PIN 25 POS Solder RA Thru-Hole 25 Terminal 1 Port
