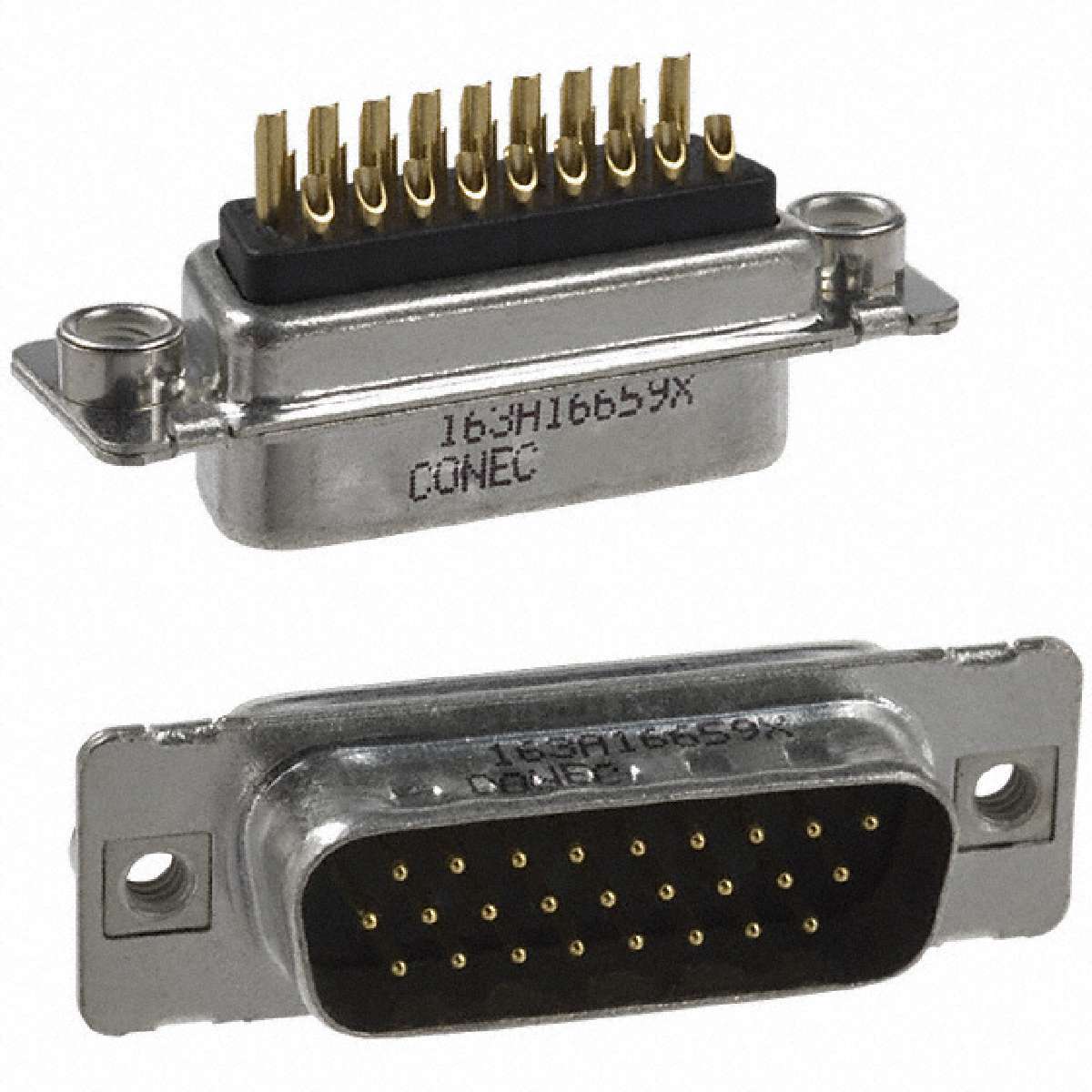

Conn High Density D-Sub PIN 26POS Solder Cup ST Panel Mount 26 Terminal 1Port
26 Position D-Sub, High Density Plug, Male Pins Connector
得捷:
CONN D-SUB HD PLUG 26P SLDR CUP
艾睿:
This high density d-sub 163A16659X DVI connector from Conec is ideal for all your serial communication needs. It has a maximum voltage rating of 60 V. This 3-row connector has a single port. It has a straight body orientation. 163A16659X is housed in polyester. This device has a maximum current rating of 3 A. Its 26 terminals use the solder cup termination method. This DVI connector has an operating temperature of -55 to 125 °C. This product is 12.93 mm tall.
Chip1Stop:
Conn High Density D-Sub PIN 26 POS Solder Cup ST Panel Mount 26 Terminal 1 Port
触点数 26
极性 Male
线规 22 AWG
触点电镀 Gold
额定电流 3 A
绝缘电阻 5000 MΩ
排数 3
易燃性等级 UL 94 V-0
针脚数 26
拔插次数 50
额定电流Max 3 A
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压Max 60 V
额定电压 60 V
接触电阻Max 10 mΩ
长度 39.5 mm
宽度 12.9 mm
高度 12.93 mm
外壳颜色 Black
颜色 Black
触点材质 Copper Alloy
工作温度 -55℃ ~ 125℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
