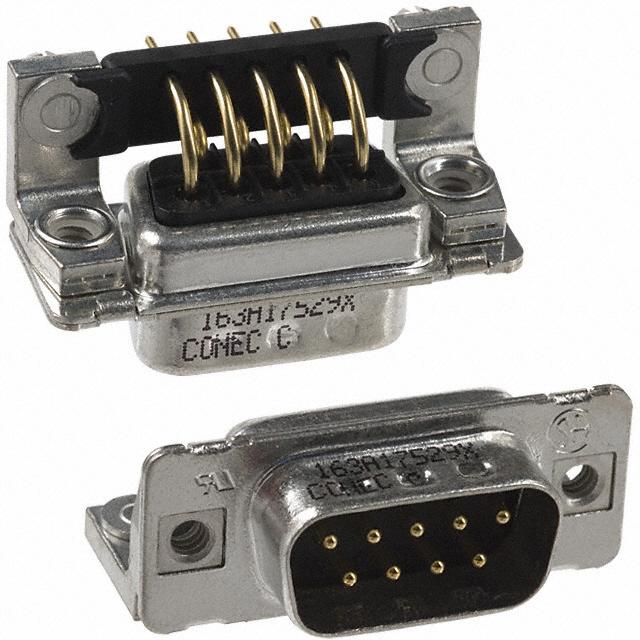

D-Sub标准连接器 9 POS SOLDER PIN ANGLED MALE THREADED
This DVI connector from is ideal for all your serial communication needs. This 2-row connector has a single port. It has a maximum voltage rating of 125 V. It has a right angle body orientation. 163A17529X is housed in polyester. This device has a maximum current rating of 7.5 A. This product is 31.19 mm long, 12.93 mm tall and 18.32 mm deep. This DVI connector has an operating temperature of -55 to 125 °C. Its 9 terminals use the solder termination method.
触点数 9
极性 Male
触点电镀 Gold
额定电流 7.5 A
绝缘电阻 5000 MΩ
排数 2
易燃性等级 UL 94 V-0
针脚数 9
拔插次数 50
额定电流Max 7.5 A
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压Max 125 V
额定电压 125 V
工作电压Max 125 V
接触电阻Max 10 mΩ
安装方式 Through Hole
长度 31.2 mm
高度 12.93 mm
外壳颜色 Black
颜色 Black
触点材质 Copper Alloy
工作温度 -55℃ ~ 125℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
