163A16259X

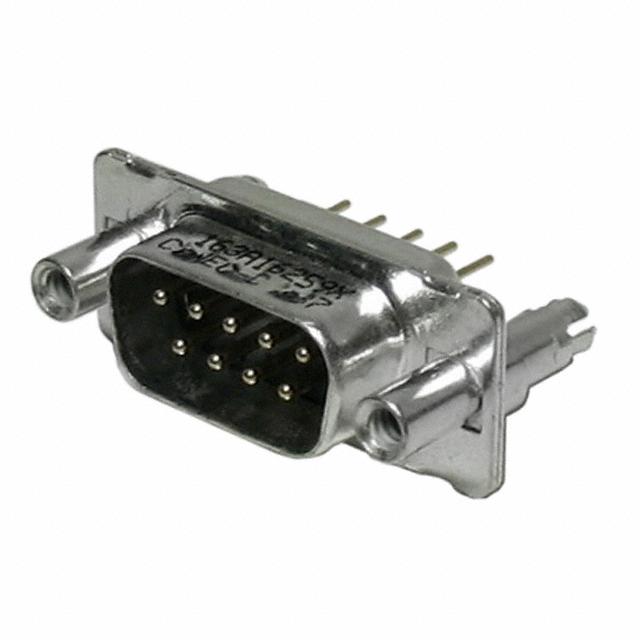

163A16259X图片1
163A16259X图片2
163A16259X图片3
163A16259X图片4
163A16259X图片5
163A16259X概述

Conn D-Subminiature PIN 9POS Solder ST Thru-Hole 9 Terminal 1Port

9 Position D-Sub Plug, Male Pins Connector


得捷:
CONN D-SUB PLUG 9POS VERT SLDR


欧时:
D Sub connector plug 9 position vertical


贸泽:
D-Sub Standard Connectors 9P DSUB PLUG STRT THRU-HOLE


艾睿:
Make the most secure connections between serial ports using the 163A16259X DVI connector from Conec. This 2-row connector has a single port. It has a straight body orientation. It has a maximum voltage rating of 125 V. This device has a maximum current rating of 7.5 A. 163A16259X is housed in polyester. This product is 31.19 mm long, 14.7 mm tall and 12.93 mm deep. This DVI connector has an operating temperature of -55 to 125 °C. Its 9 terminals use the solder termination method.


Chip1Stop:
Conn D-Subminiature PIN 9 POS Solder ST Thru-Hole 9 Terminal 1 Port


Verical:
Conn D-Subminiature PIN 9 POS Solder ST Thru-Hole 9 Terminal 1 Port


163A16259X中文资料参数规格
技术参数

触点数 9

额定电流 7.5 A

绝缘电阻 5000 MΩ

排数 2

针脚数 9

拔插次数 50

额定电流Max 7.5 A

工作温度Max 125 ℃

工作温度Min -55 ℃

额定电压Max 125 V

额定电压 125 V

工作电压Max 125 V

接触电阻Max 10 mΩ

封装参数

安装方式 Through Hole

外形尺寸

长度 31.19 mm

宽度 12.93 mm

高度 14.7 mm

物理参数

颜色 Black

触点材质 Copper Alloy

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买163A16259X
型号: 163A16259X
制造商: Conec
描述:Conn D-Subminiature PIN 9POS Solder ST Thru-Hole 9 Terminal 1Port
替代型号163A16259X
型号/品牌 代替类型 替代型号对比

163A16259X

Conec

当前型号

当前型号

XM2E-0940-112L

欧姆龙

功能相似

163A16259X和XM2E-0940-112L的区别
