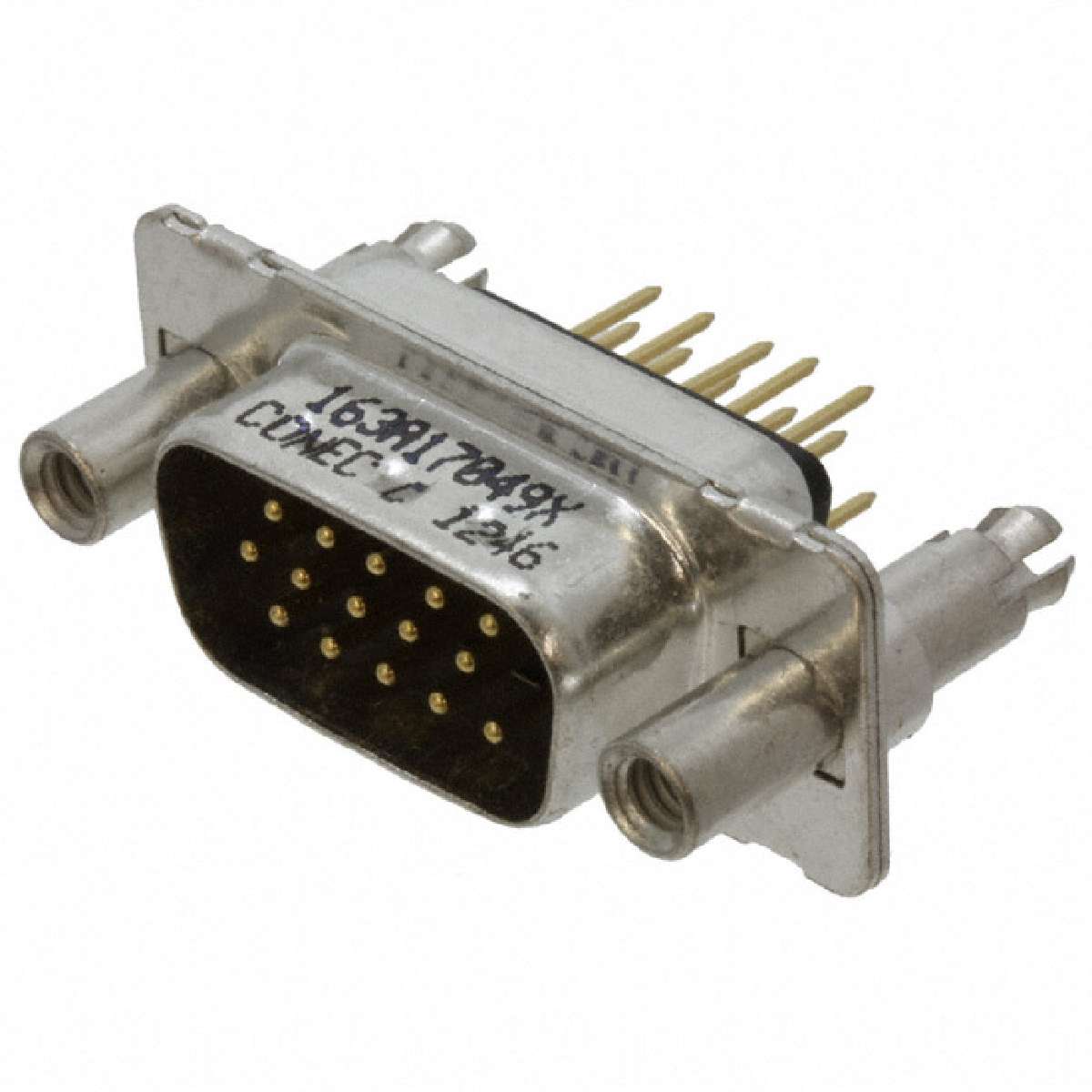

163A17049X

D-Sub高密度连接器 D-SUB HD MALE 15P STR PCB

15 位 D-Sub，高密度 插头，公引脚

得捷:
CONN D-SUB HD PLUG 15P VERT SLDR

贸泽:
D-Sub高密度连接器 D-SUB HD MALE 15P STR PCB

艾睿:
The high density d-sub 163A17049X DVI connector from Conec is perfect for communicating between serial connections with minimal interference. It has a straight body orientation. This 3-row connector has a single port. It has a maximum voltage rating of 60 V. 163A17049X is housed in polyester. This device has a maximum current rating of 3 A. This product is 31.19 mm long, 14.7 mm tall and 12.93 mm deep. Its 15 terminals use the solder termination method. This DVI connector has an operating temperature of -55 to 125 °C.

Chip1Stop:
Conn High Density D-Sub PIN 15 POS Solder ST Thru-Hole 15 Terminal 1 Port

Verical:
Conn High Density D-Sub PIN 15 POS Solder ST Thru-Hole 15 Terminal 1 Port
