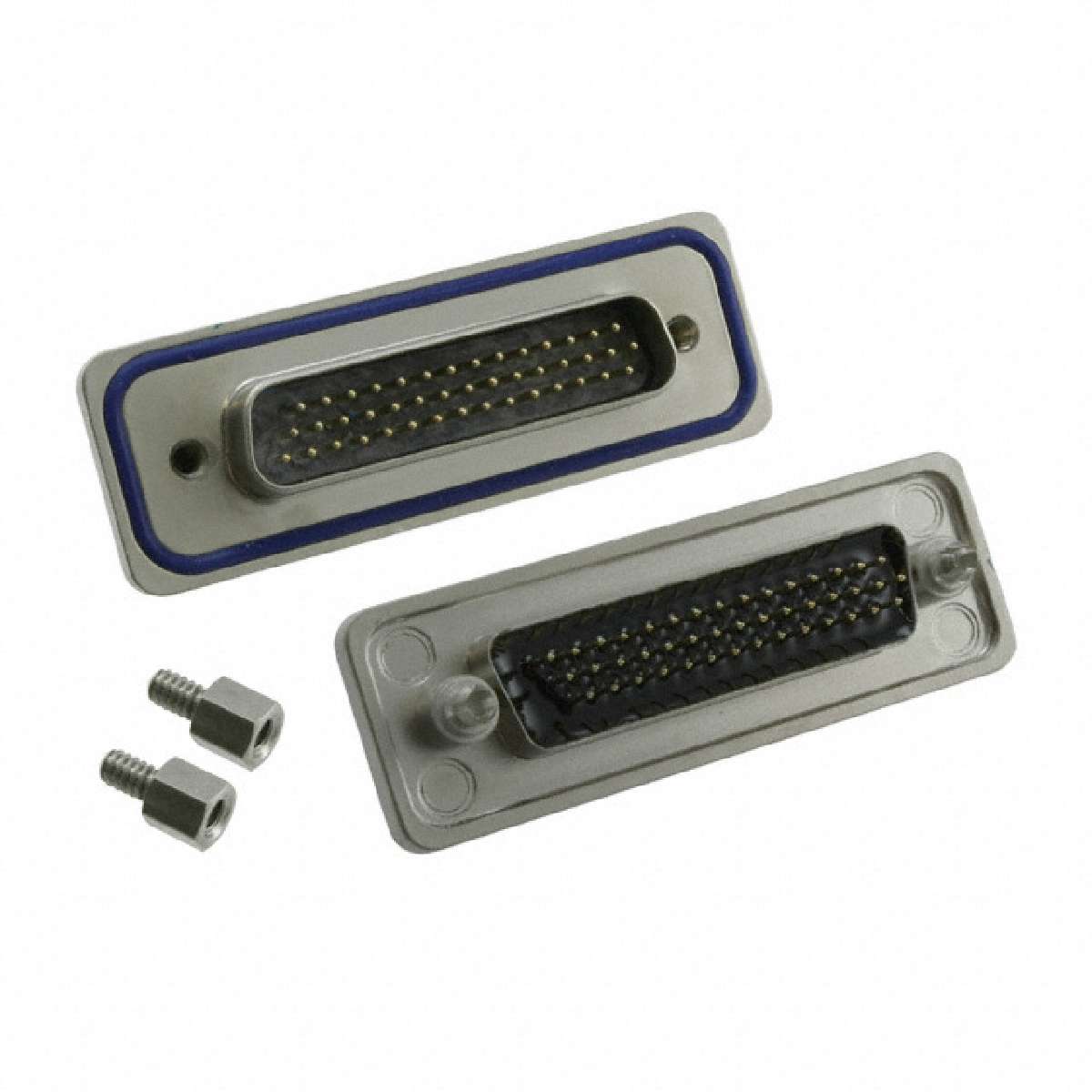

15-000513图片5
15-000513概述

CONN D-SUB HD PLUG 44POS PNL MNT

44 位 D-Sub,高密度 插头,公引脚


得捷:
CONN D-SUB HD PLUG 44POS PNL MNT


贸泽:
D-Sub High Density Connectors D-Sub Hd44 Male Pc Str


艾睿:
The ip67 d-sub 15-000513 DVI connector from Conec is perfect for communicating between serial connections with minimal interference. This male connector has 44 male contacts. This 3-row connector has a single port. It has a straight body orientation. This product is 61.4 mm long, 21.1 mm tall and 18.22 mm deep. Its 44 terminals use the solder cup termination method.


15-000513中文资料参数规格
技术参数

触点数 44

极性 Male

额定电流 3 A

排数 3

针脚数 44

拔插次数 50

额定电流Max 3 A

工作温度Max 105 ℃

工作温度Min -25 ℃

额定电压Max 60 V

额定电压 60 V

接触电阻Max 10 mΩ

封装参数

安装方式 Through Hole

外形尺寸

高度 21.1 mm

物理参数

颜色 Black

触点材质 Copper Alloy

工作温度 -25℃ ~ 105℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买15-000513
型号: 15-000513
制造商: Conec
描述:CONN D-SUB HD PLUG 44POS PNL MNT
