15-002213

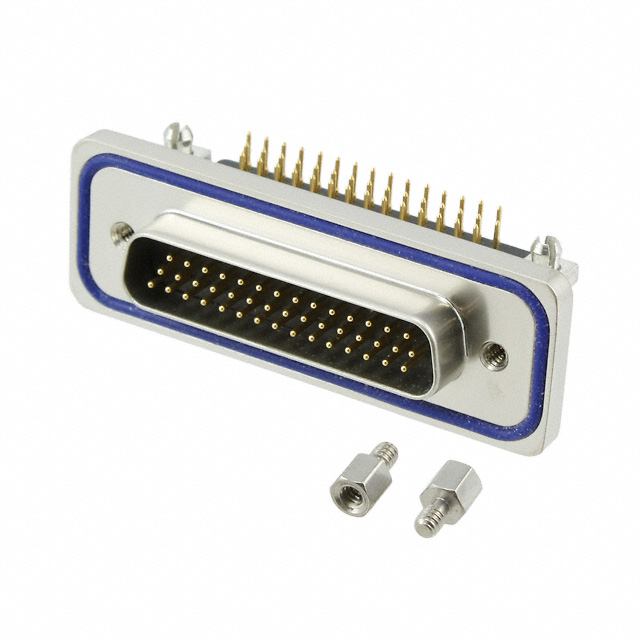

15-002213图片1
15-002213图片2
15-002213图片3
15-002213概述

Conn IP67 D-Sub PIN 44POS Solder RA Thru-Hole 44 Terminal 1Port

The ip67 d-sub DVI connector from is ideal for communicating with any serial connections you have. This 3-row connector has a single port. It has a right angle body orientation. Its 44 terminals use the solder termination method. This product is 21.1 mm tall.


得捷:
CONN D-SUB HD PLUG 44P R/A SLDR


艾睿:
The ip67 d-sub 15-002213 DVI connector from Conec is ideal for communicating with any serial connections you have. This 3-row connector has a single port. It has a right angle body orientation. Its 44 terminals use the solder termination method. This product is 21.1 mm tall.


15-002213中文资料参数规格
技术参数

触点数 44

极性 Male

额定电流 3 A

排数 3

针脚数 44

拔插次数 50

额定电流Max 3 A

工作温度Max 105 ℃

工作温度Min -25 ℃

额定电压Max 60 V

额定电压 60 V

接触电阻Max 10 mΩ

封装参数

安装方式 Through Hole

外形尺寸

高度 21.1 mm

物理参数

颜色 Black

触点材质 Copper Alloy

工作温度 -25℃ ~ 105℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买15-002213
型号: 15-002213
制造商: Conec
描述:Conn IP67 D-Sub PIN 44POS Solder RA Thru-Hole 44 Terminal 1Port
