1688421概述

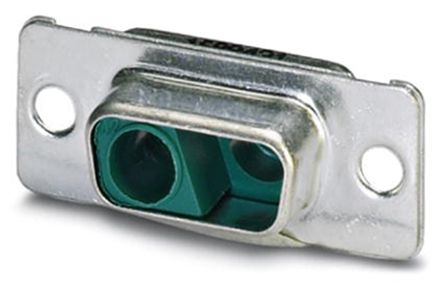

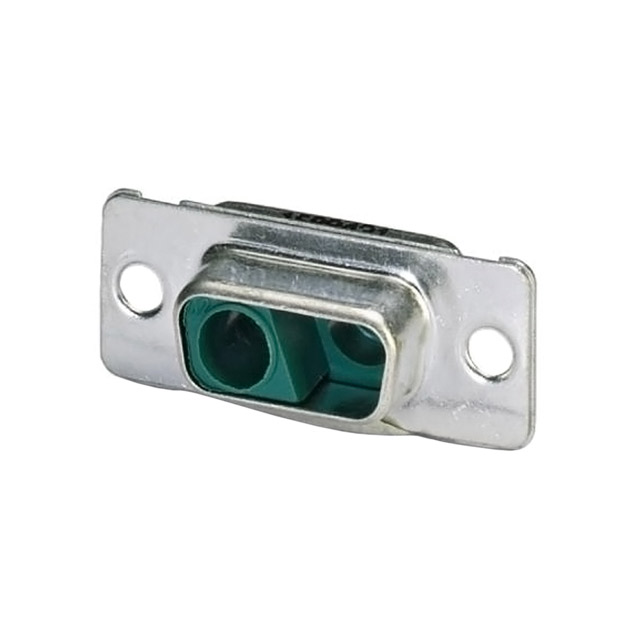

Phoenix Contact 插座插件 1688421, 31.19 x 12.45 x 12.93mm

D-SUB contact carrier, shell size 1, accommodation for two combined contacts, type of contact socket, straight, fixing with a 3 mm hole, for panel mounting frame and sleeve housing VS-09-...


得捷:
CONN D-SUB HOUSING RCPT 2POS


欧时:
Phoenix Contact 插座插件 1688421, 31.19 x 12.45 x 12.93mm


贸泽:
D-Sub混合触点连接器 VS-09-BU-DSUB-2P


Verical:
Conn D-Subminiature SKT 2Cavity POS ST Panel Mount 2 Terminal 1 Port


MASTER:
D-SUB contact carrier, shell size 1, accommodation for two combined contacts, type of contact socket, straight, fixing with a 3 mm hole, for panel mounting frame and sleeve housing VS-09-...


Online Components:
D-SUB contact carrier, shell size 1, accommodation for two combined contacts, type of contact socket, straight, fixing with a 3 ...


1688421中文资料参数规格
技术参数

触点电镀 Gold

排数 1

易燃性等级 UL 94 V-0

拔插次数 500

工作温度Max 125 ℃

工作温度Min -55 ℃

封装参数

安装方式 Panel

外形尺寸

长度 31.2 mm

高度 12.93 mm

厚度 12.93 mm

物理参数

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536694030

数据手册

在线购买1688421
型号: 1688421
描述:Phoenix Contact 插座插件 1688421, 31.19 x 12.45 x 12.93mm
