1688366概述

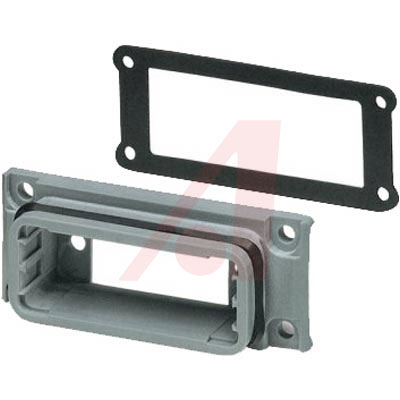

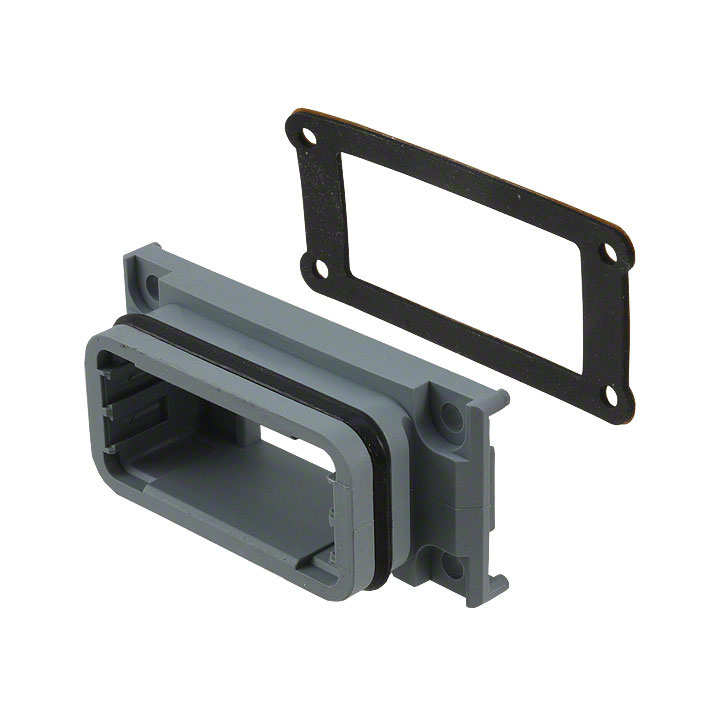

D-Subminiature Connectors VS-09-A 9P PANEL MOUNT BASE

D-SUB Panel Mounting Base

* -20 to +80 °C operating temperature

With radially-acting profile gasket mounted, with enclosed self-adhesive flat gasket without mounting screws on the device side.


得捷:
DSUB PANEL MOUNTING FRAME


艾睿:
Ideal for any connection for wires this mounting frame 1688366 connector accessory manufactured from Phoenix Contact will help make a strong connection.


Allied Electronics:
-SUB panel mounting frame, shell size 1, IP67 degree of protection


Verical:
Connector Accessories Mounting Frame Straight Polyamide Gray


MASTER:
D-SUB panel mounting frame - shell size 1 - IP67 degree of protection


Online Components:
Connector Accessories Mounting Frame Straight Plastic Gray


Electro Sonic:
D-SUB panel mounting frame - shell size 1 - IP67 degree of protection


1688366中文资料参数规格
技术参数

易燃性等级 UL 94 V-0

针脚数 9

工作温度Max 80 ℃

工作温度Min -40 ℃

外形尺寸

高度 16.6 mm

物理参数

颜色 Gray

材质 Plastic

工作温度 -40℃ ~ 80℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8538908080

数据手册

在线购买1688366
型号: 1688366
描述:D-Subminiature Connectors VS-09-A 9P PANEL MOUNT BASE
