Conn FFC Connector SKT 11POS 1mm Solder RA SMD T/R
1MM FFC SMT H ASSY 11P EMBOSS
得捷:
CONN FFC FPC TOP 11POS 1MM R/A
贸泽:
FFC & FPC Connectors 11P 1.00MM R/A SMD
艾睿:

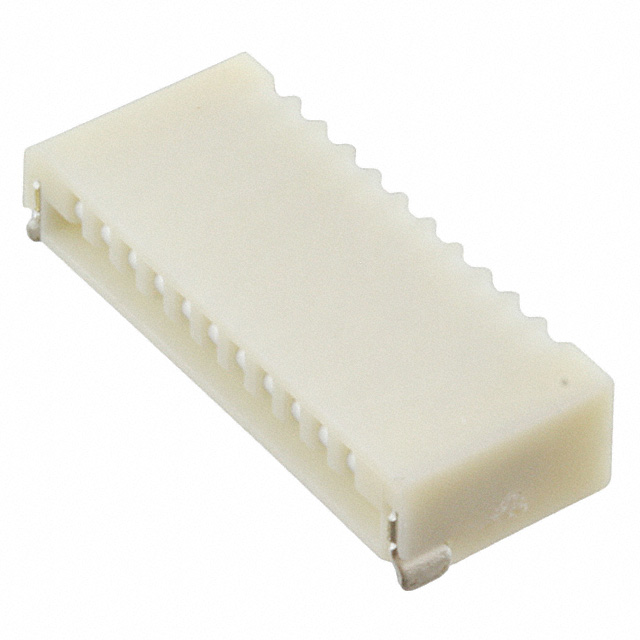

Utilize FFC technology with this ffc connector 1-84981-1 flexible flat cable from TE Connectivity which can hold many transmission channels on a very narrow, very flat ribbon-like structure. Its pitch is 1 mm. It has a maximum voltage rating of 125 VAC. It has a right angle body orientation. This socket type connector&s;s 11 contacts that are made out of phosphor bronze and plated with tin over nickel. This is a 1-row connector. This device has a maximum current rating of 1 A/contact. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It uses the solder termination method. 1-84981-1 is housed in beige nylon. This flexible flat cable has an operating temperature of -20 to 85 °C. This product is 14 mm long, 3 mm tall and 6.3 mm deep.
安富利:
Conn FFC Connector SKT 11 POS 1mm Solder RA SMD T/R
Chip1Stop:
Conn FFC Connector SKT 11 POS 1mm Solder RA SMD T/R
Verical:
Conn FFC Connector SKT 11 POS 1mm Solder RA SMD T/R
Newark:
# AMP - TE CONNECTIVITY 1-84981-1 1MM FFC SMT H ASSY 11P EMBOSS New
MASTER:
ASSY, 1.00MM FFC CONN. SMT, H NON-ZIF
Powell:
FPC Flexible Printed Circuit Connectors
Online Components:
1MM FFC SMT H ASSY 11P EMBOSS
Electro Sonic:
1MM FFC SMT H ASSY 11P EMBOSS

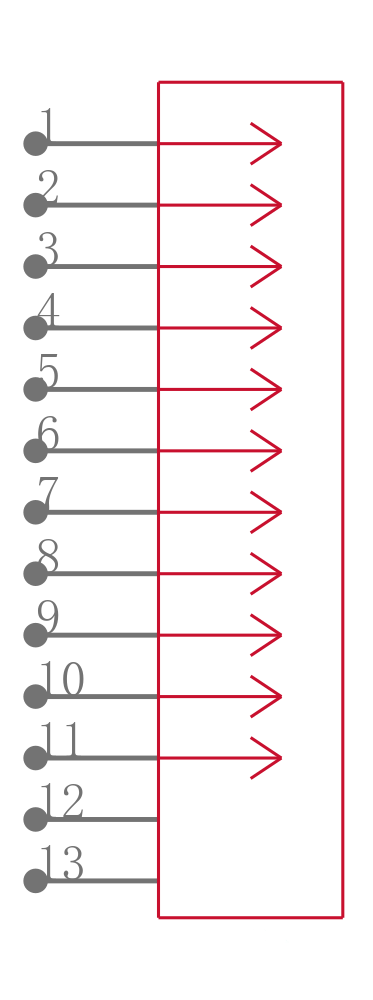

触点数 11
极性 Female
触点电镀 Tin
额定电流 1 A
排数 1
方向 Right Angle
易燃性等级 UL 94 V-0
针脚数 11
屏蔽 No
额定电流Max 1A/触头
工作温度Max 85 ℃
工作温度Min 20 ℃
额定电压Max 125 VAC
额定电压 125 V
安装方式 Surface Mount

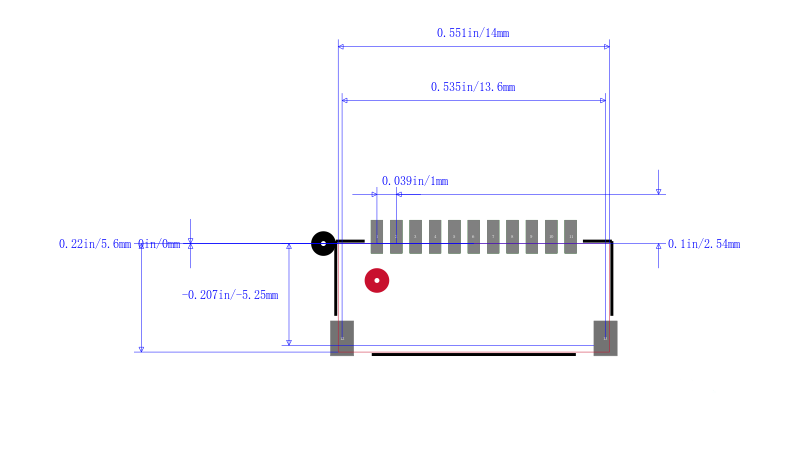

长度 14 mm
宽度 5.6 mm
高度 3 mm
外壳颜色 Beige
触点材质 Phosphor Bronze
工作温度 -20℃ ~ 85℃
外壳材质 Nylon
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Signal
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
