Conn FFC Connector SKT 14POS 1mm Solder RA SMD T/R
1MM FFC SMT H ASSY 14P EMBOSS
得捷:
CONN FFC FPC TOP 14POS 1MM R/A
艾睿:

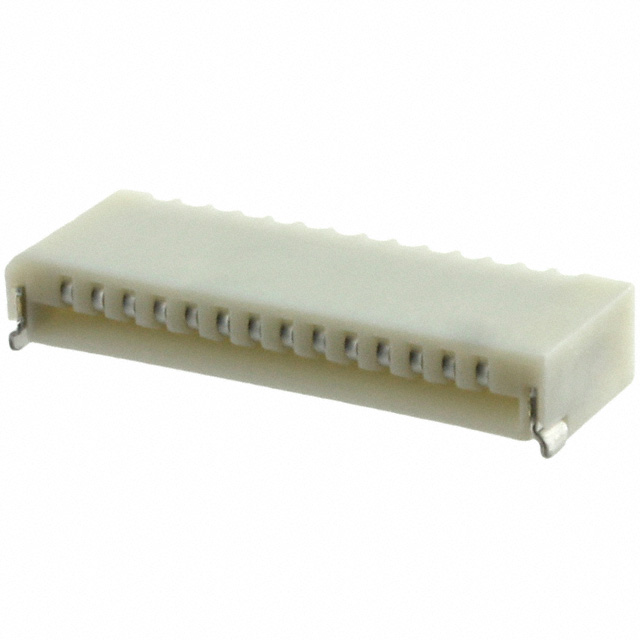

This ffc connector 1-84981-4 flexible flat cable from TE Connectivity is advantageous over traditional spherical wiring because it can hold many transmission channels with limited space. This is a 1-row connector. Its pitch is 1 mm. This socket type connector&s;s 14 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a right angle body orientation. It has a maximum voltage rating of 125 VAC. This device has a maximum current rating of 1 A/contact. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This flexible flat cable has an operating temperature of -20 to 85 °C. It uses the solder termination method. This product is 17 mm long, 3 mm tall and 6.3 mm deep. 1-84981-4 is housed in beige nylon.
安富利:
Conn FFC Connector SKT 14 POS 1mm Solder RA SMD T/R
Chip1Stop:
Conn FFC Connector SKT 14 POS 1mm Solder RA SMD T/R
Verical:
Conn FFC Connector SKT 14 POS 1mm Solder RA SMD T/R
Newark:
# AMP - TE CONNECTIVITY 1-84981-4 FFC / FPC Board Connector, 1 mm, 14 Contacts, Receptacle, FPC Series, Surface Mount, Top
MASTER:
ASSY, 1.00MM FFC CONN. SMT, H NON-ZIF
Powell:
FPC Flexible Printed Circuit Connectors
Online Components:
1MM FFC SMT H ASSY 14P EMBOSS
Electro Sonic:
1MM FFC SMT H ASSY 14P EMBOSS
触点数 14
极性 Female
触点电镀 Tin
额定电流 1 A
排数 1
方向 Right Angle
易燃性等级 UL 94 V-0
针脚数 14
屏蔽 No
额定电流Max 1A/触头
工作温度Max 85 ℃
工作温度Min -20 ℃
额定电压Max 125 VAC
额定电压 125 V
安装方式 Surface Mount
长度 17 mm
宽度 5.6 mm
高度 3 mm
外壳颜色 Beige
触点材质 Phosphor Bronze
工作温度 -20℃ ~ 85℃
外壳材质 Nylon
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Signal
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
HTS代码 8536694040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1-84981-4 TE Connectivity 泰科 | 当前型号 | 当前型号 |
14FMN-SMT-A-TFLFSN 日本压着端子 | 功能相似 | 1-84981-4和14FMN-SMT-A-TFLFSN的区别 |
