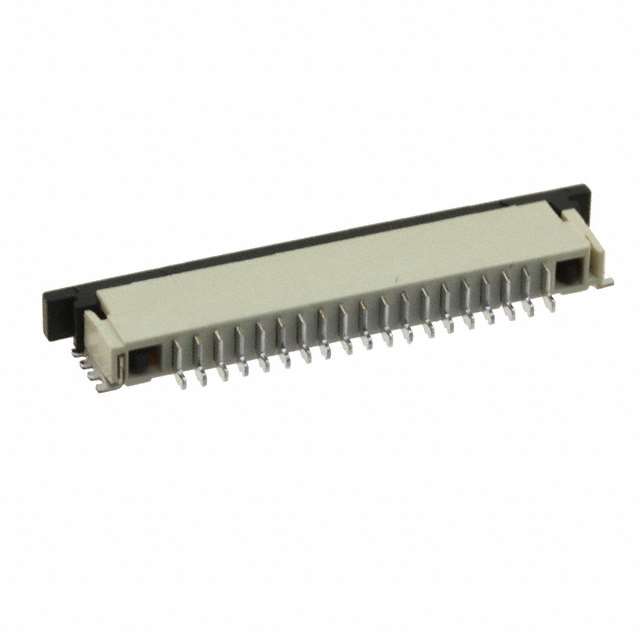

1-84952-9

FFC & FPC连接器 1MM FPC HORZ.BTTM CONT.ASS.19P

1MM FPC HORZ.BTTM CONT.ASS.19P

Product Highlights

1.00 mm Centerline

Number of Positions = 19

PCB Mount Angle = Right Angle

PCB Mount Style = Surface Mount

Contact Type = Bottom

得捷:
CONN FPC BOTTOM 19POS 1MM R/A

贸泽:
FFC & FPC连接器 1MM FPC HORZ.BTTM CONT.ASS.19P

艾睿:
Design your electronic device with FFC technology by implementing this fpc connector 1-84952-9 flexible flat cable from TE Connectivity. This socket type connector&s;s 19 contacts that are made out of phosphor bronze and plated with tin over nickel. This is a 1-row connector. It has a maximum voltage rating of 200 VAC. It has a right angle body orientation. Its pitch is 1 mm. This device has a maximum current rating of 1 A/contact. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This product is 26.92 mm long, 2.56 mm tall and 6.54 mm deep. 1-84952-9 is housed in natural liquid crystal polymer. This flexible flat cable has an operating temperature of -40 to 85 °C. It uses the solder termination method.

Chip1Stop:
Conn FPC Connector SKT 19 POS 1mm Solder RA SMD T/R

Verical:
Conn FPC Connector SKT 19 POS 1mm Solder RA SMD T/R

Newark:
# AMP - TE CONNECTIVITY  1-84952-9  FFC / FPC Board Connector, 1 mm, 19 Contacts, Receptacle, FPC Series, Surface Mount, Bottom

MASTER:
1MM FPC BOTTOM CONTACT LEADFREE

Powell:
FPC Flexible Printed Circuit Connectors

Online Components:
1MM FPC HORZ.BTTM CONT.ASS.19P

Electro Sonic:
1MM FPC HORZ.BTTM CONT.ASS.19P
