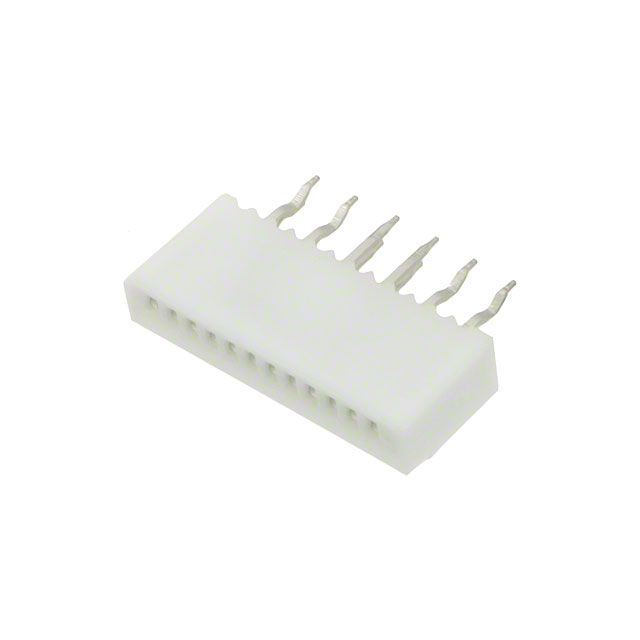

1-84984-2

AMP FROM TE CONNECTIVITY  1-84984-2  连接器, FFC/ FPC板, FPC Series, 12 触点, 插座, 1 mm, 通孔安装

1mm FFC DIP V ASSY 12P TUBE

得捷:
CONN FFC FPC VERT 12POS 1MM PCB

欧时:
FPC 1.0mm receptacle, PCB, 12P, DIP V

e络盟:
连接器, FFC/ FPC板, 1 mm, 12 触点, 插座, FPC Series, 通孔安装

艾睿:

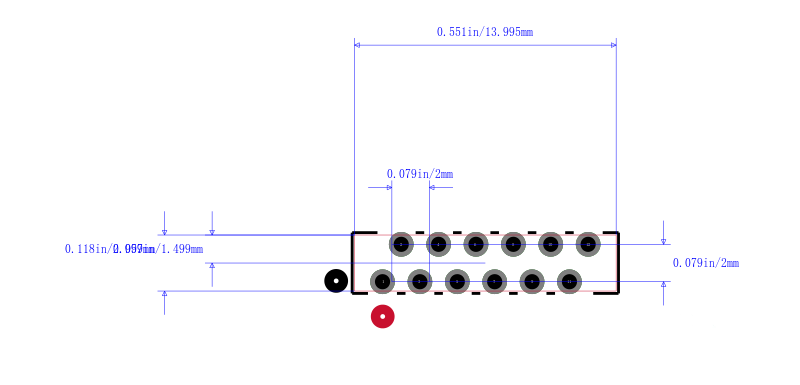

When working with discrete components you should use this fpc connector 1-84984-2 flexible printed circuit from TE Connectivity to save valuable space. This socket type connector&s;s 12 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a maximum voltage rating of 125 VAC. This is a 1-row connector. It has a straight body orientation. Its pitch is 1 mm. This device has a maximum current rating of 1 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This flexible flat cable has an operating temperature of -20 to 85 °C. This product is 14 mm long, 5.6 mm tall and 3 mm deep. It uses the solder termination method. 1-84984-2 is housed in natural polybutylene terephthalate.

安富利:
Conn FPC Connector SKT 12 POS 2mm Solder ST Thru-Hole Tube

Chip1Stop:
Conn FPC Connector SKT 12 POS 2mm Solder ST Thru-Hole Tube

Verical:
Conn FPC Connector SKT 12 POS 1mm Solder ST Thru-Hole Tube

Newark:
# AMP - TE CONNECTIVITY  1-84984-2  FFC / FPC Board Connector, Through Hole, Receptacle, 12, 1 mm

MASTER:
ASSY, 1.00mm FFC CONN DIP, V

Powell:
FPC Flexible Printed Circuit Connectors

Online Components:
1mm FFC DIP V ASSY 12P TUBE

AMEYA360:
CONN FFC FPC VERT 12POS 1MM PCB

Electro Sonic:
1mm FFC DIP V ASSY 12P TUBE
