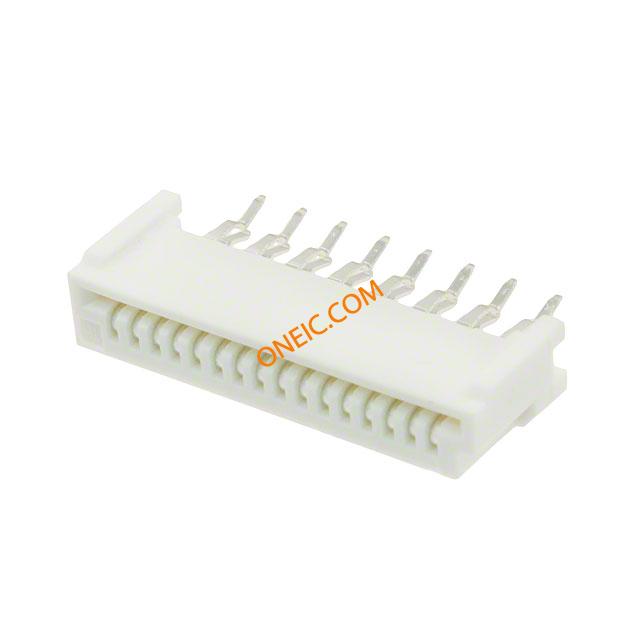

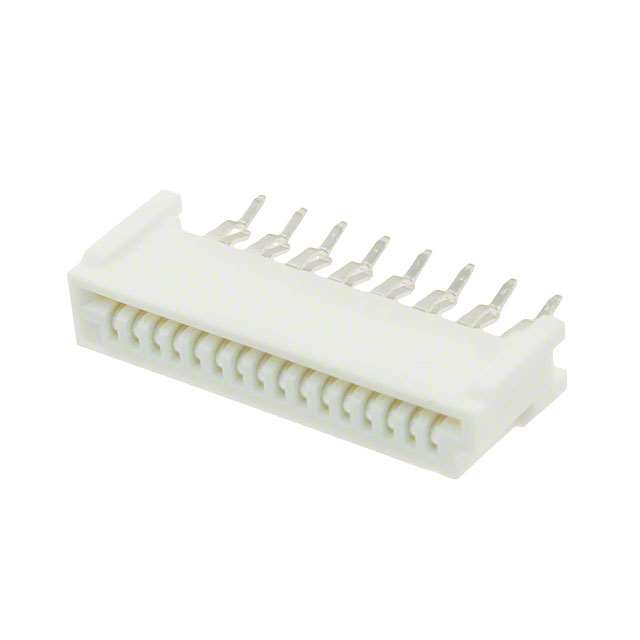

1-84534-6

AMP FROM TE CONNECTIVITY  1-84534-6  连接器, FFC/ FPC板, FPC Series, 16 触点, 插座, 1.25 mm, 通孔安装

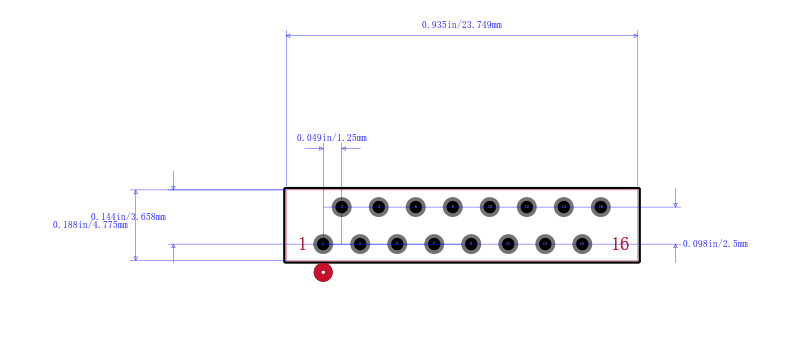

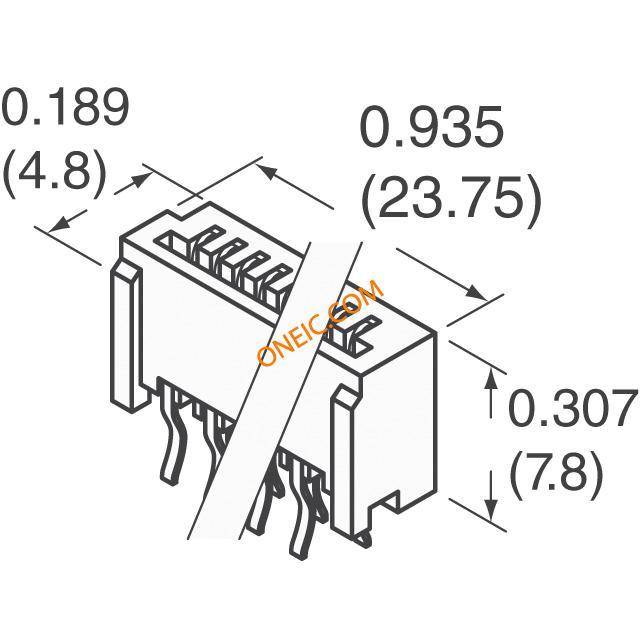

Space can be a limiting factor when designing electronics. "s ffc connector flexible flat cable can help you fit more transmission lines onto a flat, space-saving cable. It has a maximum voltage rating of 50 VAC. Its pitch is 1.25 mm. This is a 1-row connector. It has a straight body orientation. This socket type connector"s 16 contacts that are made out of phosphor bronze and plated with tin. This device has a maximum current rating of 1 A/contact. The item will be shipped in tray orientation. This flexible flat cable has an operating temperature of -20 to 80 °C. It uses the solder termination method. This product is 23.75 mm long, 7.8 mm tall and 4.8 mm deep. 1-84534-6 is housed in white polybutylene terephthalate.
