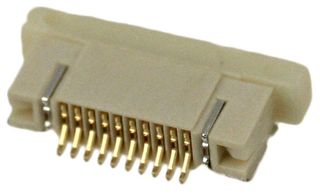

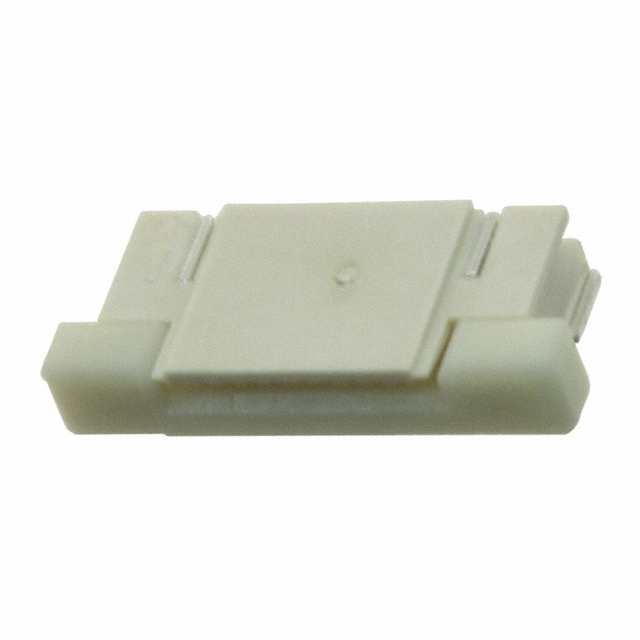

AMP FROM TE CONNECTIVITY 1-1734839-0 连接器, FFC/ FPC板, FPC Series, 10 触点, 插座, 0.5 mm, 表面安装 , 顶部
是一款10路1排ZIF直角Flex-to-Board FPC, 带护罩, 具有0.025µm镀金磷青铜单梁设计触芯, UL94V-O高温热塑塑料外壳. FPC系列插座带有填充执行器类型, 表面安装端接方法到PC板.
得捷:
CONN FPC TOP 10POS 0.5MM R/A
立创商城:
1-1734839-0
e络盟:
连接器, FFC/ FPC板, FPC Series, 10 触点, 插座, 0.5 mm, 表面安装 , 顶部
艾睿:
Thanks to TE Connectivity&s;s fpc connector 1-1734839-0 flexible flat cable, you can keep the size of your project and the number of disorganized electrical lines down to a minimum. It has a right angle body orientation. This is a 1-row connector. This socket type connector&s;s 10 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 0.5 mm. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. 1-1734839-0 is housed in natural thermoplastic. This product is 10.43 mm long, 2.05 mm tall and 5.1 mm deep. It uses the solder termination method.
Chip1Stop:
Conn FPC Connector SKT 10 POS 0.5mm Solder RA SMD T/R
Verical:
Conn FPC Connector SKT 10 POS 0.5mm Solder RA SMD T/R
Newark:
FFC / FPC Board Connector, 0.5 mm, 10 Contacts, Receptacle, Surface Mount, Top
MASTER:
FPC CONNECTOR, 0.5mm PITCH, TOP CONTACT, SMT TYPE.
Powell:
FPC Flexible Printed Circuit Connectors
Online Components:
FPC CONN. 0.5MM PITCH T/C,10P
AMEYA360:
CONN FPC TOP 10POS 0.50MM R/A
Electro Sonic:
FPC CONN. 0.5MM PITCH T/C,10P
触点数 10
极性 Female
触点电镀 Gold
额定电流 0.5 A
排数 1
方向 Right Angle
易燃性等级 UL 94 V-0
针脚数 10
屏蔽 No
额定电流Max 0.5A/触头
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 250 VAC
额定电压 250 V
安装方式 Surface Mount
引脚数 10
封装 SMD
引脚间距 500 µm
长度 10.43 mm
宽度 5.1 mm
高度 2.05 mm
封装 SMD
引脚间距 500 µm
外壳颜色 Natural
颜色 Natural
触点材质 Phosphor Bronze
材质 Thermoplastic
工作温度 -20℃ ~ 85℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, Computers & Computer Peripherals, Computers & Computer Peripherals, Industrial, Industrial, Signal, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536694040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1-1734839-0 TE Connectivity 泰科 | 当前型号 | 当前型号 |
1-1734742-0 泰科 | 类似代替 | 1-1734839-0和1-1734742-0的区别 |
52892-1033 莫仕 | 功能相似 | 1-1734839-0和52892-1033的区别 |
52745-1097 莫仕 | 功能相似 | 1-1734839-0和52745-1097的区别 |
