17-200121

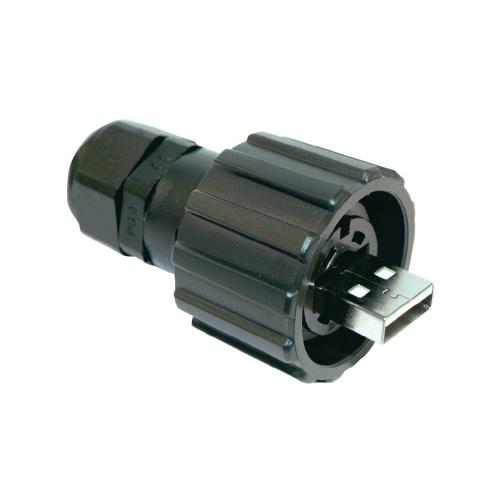

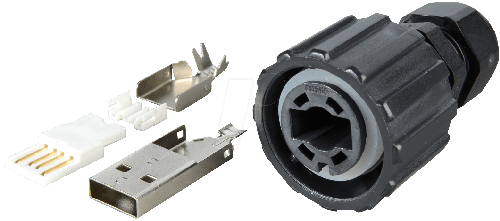

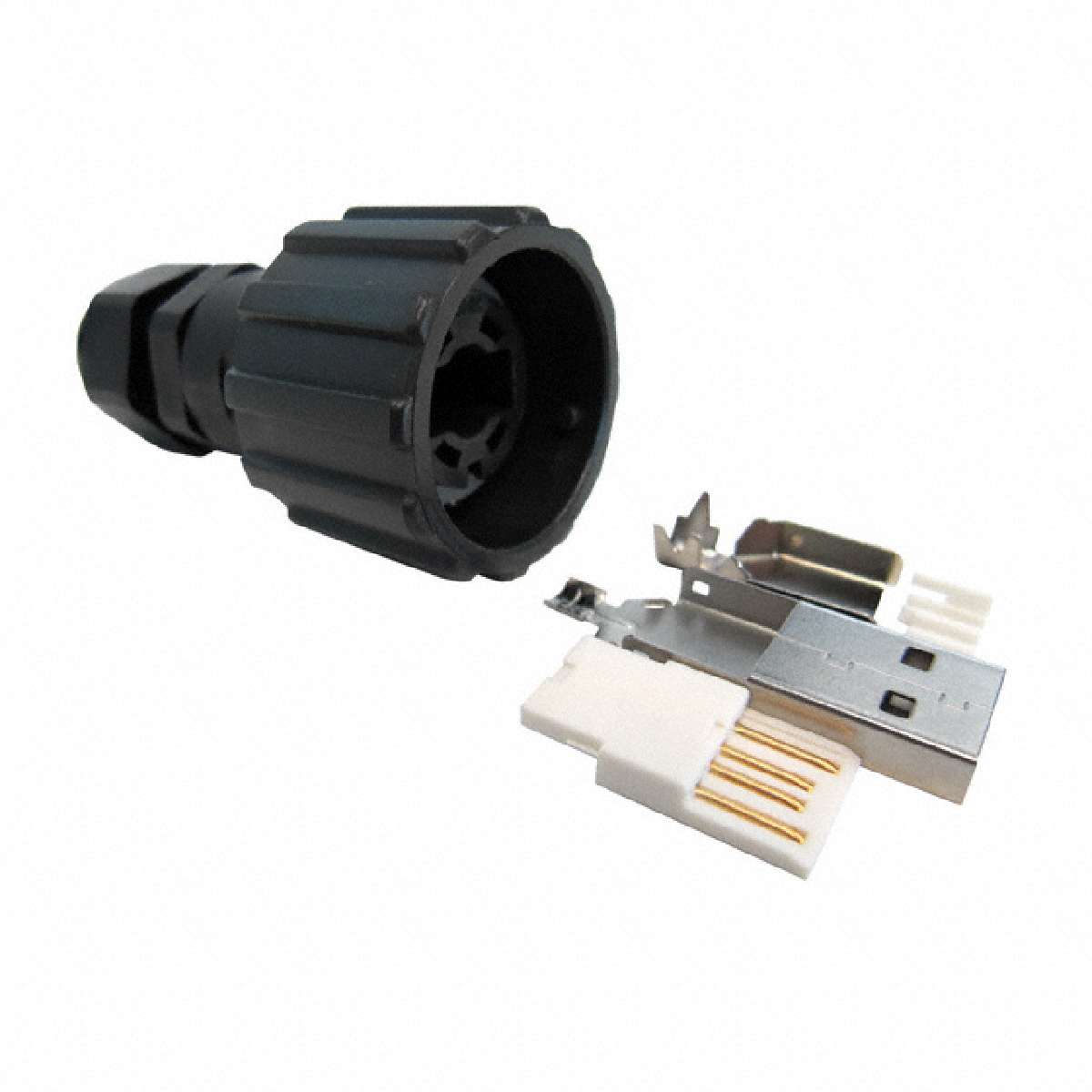

Conn USB Type A PL 4POS Solder Cup ST Cable Mount 4 Terminal 1Port

The usb type a audio and video connector from is the best when it comes to handling your video and audio needs. This PL connector"s 4 contacts that are made out of copper alloy and plated with gold over nickel. It has a plug type gender. This connector has a single port. It has a maximum voltage rating of 30 VAC. It has a straight body orientation. This device has a maximum current rating of 1.5 A. 17-200121 is housed in polybutylene terephthalate. This product is 61.8 mm long with a diameter of 31.5 mm. Its 4 terminals use the solder cup termination method. This cable has a minimum operating temperature of -40 °C and a maximum of 85 °C.
