1-1939638-7

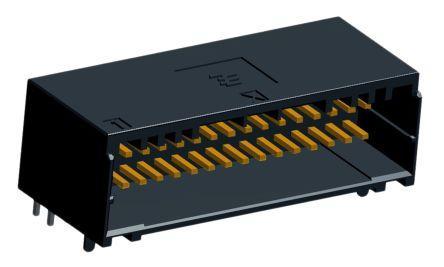

TE CONNECTIVITY  1-1939638-7  线至板连接器, Dynamic D-1100D系列, 34 触点, 针座, 2 mm, 通孔安装, 2 排

Dynamic 1100 系列管座

动态系列的 D-1100 系列管座具有镀锡固定支脚，以提高稳定性。 D-1100 系列管座的印刷电路板焊接尾线为镀锡，触点插片为镀金。 这些 D-1100 系列管座的建议印刷电路板厚度为 1.0 至 1.6mm。 D-1100 系列管座的设计有助于在配接期间防止触点弯曲。

### 注

有关匹配的 D-1100 系列外壳，请参见典型库存号 706-4411。

### TE Connectivity Dynamic 1000 系列

得捷:
CONN HEADER R/A 34POS 2MM

欧时:
DYNAMIC D-1100 2mm R/A PCB header, 34P

立创商城:
2mm 2x17P 弯插

e络盟:
线至板连接器, 2 mm, 34 触点, 针座, Dynamic D-1100D系列, 通孔安装, 2 排

艾睿:
Use this shrouded 1-1939638-7 connector from TE Connectivity when board-to-board interconnects is required. This HDR connector&s;s 34 contacts that are made out of copper alloy and plated with gold. Its pitch is 2 mm. It has a header type gender. It has a right angle body orientation. This is a 2-row connector. It has a maximum voltage rating of 125 VAC. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. 1-1939638-7 is housed in polybutylene terephthalate.

安富利:
DYNAMIC 1100D HDR ASSY H 34P XBLACK GOLD

Chip1Stop:
Conn Shrouded Header HDR 34 POS 2mm Solder RA Thru-Hole Tube

Verical:
Conn Shrouded Header HDR 34 POS 2mm Solder RA Side Entry Thru-Hole Tube
