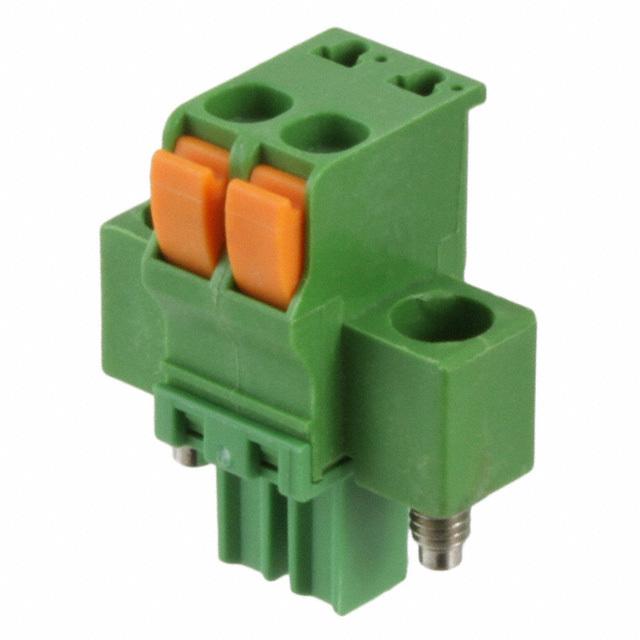

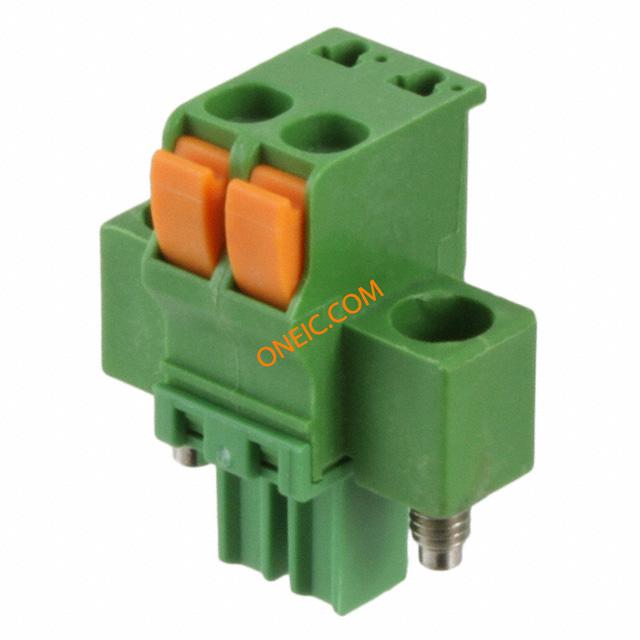

TE CONNECTIVITY 1986726-2 接线端子块, 插入式, 2路, 30-14AWG
The new spring type straight plugs provide a quick and easy way for installers in the field to mate wires without the use of special tools. TE"s comprehensive solutions, including left and right hand spring plugs, clamp wires in quickly saving both time and labor for a multitude of control and power wiring applications.
得捷:
TERM BLOCK PLUG 2POS STR 3.81MM
e络盟:
接线端子块, 插入式, 2路, 30-14AWG
艾睿:
Conn Terminal Block F 2 POS 3.81mm ST Cable Mount 11A/Contact
Allied Electronics:
Buchanan; Conn; TermBlk; Plug; LtHand; Spring; 2Pole; 3.81mm; 30-14AWG; 300V
安富利:
Conn Terminal Block PL 2 POS 3.81mm ST Panel Mount
Verical:
Conn Terminal Block F 2 POS 3.81mm ST Cable Mount 11A/Contact
Newark:
# TE CONNECTIVITY 1986726-2 Pluggable Terminal Block, 3.81 mm, 2 Positions, 30 AWG, 14 AWG, 2 mm², Push In
MASTER:
Str Plug Spring Type LH, FL, 2P, 3.81
Online Components:
Str Plug Spring Type LH, FL, 2P, 3.81
Electro Sonic:
Str Plug Spring Type LH, FL, 2P, 3.81
触点数 2
线规 14AWG ~ 30AWG
触点电镀 Tin, Tin over Copper
额定电流 11 A
绝缘电阻 1000 MΩ
排数 1
电路数 2
针脚数 2
额定电流Max 11A/触头
工作温度Max 110 ℃
工作温度Min -40 ℃
额定电压Max 300 VAC
额定电压 300 V
工作电压Max 300 VAC
引脚间距 3.81 mm
高度 11.65 mm
引脚间距 3.81 mm
外壳颜色 Green
颜色 Green
触点材质 Copper Alloy
工作温度 -40℃ ~ 110℃
外壳材质 Nylon
产品生命周期 Obsolete
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536908010
