1615770000

WEIDMULLER  1615770000  插拔式接线端子, 16 路, 300 V, 10 A, 3.5 mm, 28 AWG, 14 AWG

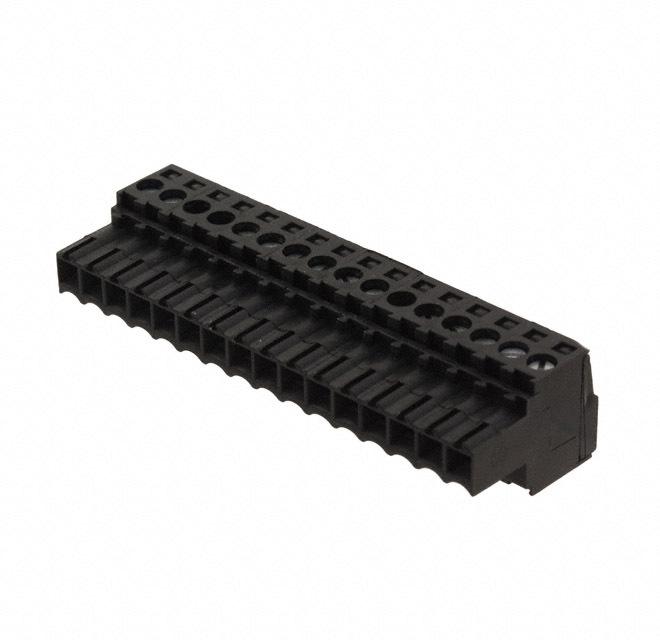

The is a 16-pole black female PCB Plug-in Connector with clamping yoke connection. The BL 3.50/16/180 SN BK BX connector has tinned Cu-leg contact with 4 to 8µm Sn hot-dip tinned layer structure of plug contact and a PBT insulator. The female plug is suitable for wire connecting conductors 3.5mm pitch. The female plug provides space for labelling and can be coded.

.

Safe from finger touch

.

>=10⁸R Insulation resistance

.

0.2 to 0.25Nm Tightening torque

.

DIN 5264 Screwdriver blade standard

.

IP20 Protection

.

UL94V-0 Flammability

.

-50 to 100°C Operating temperature range
