1986725-2

TE CONNECTIVITY  1986725-2  接线端子块, 插入式, 2路, 30-14AWG

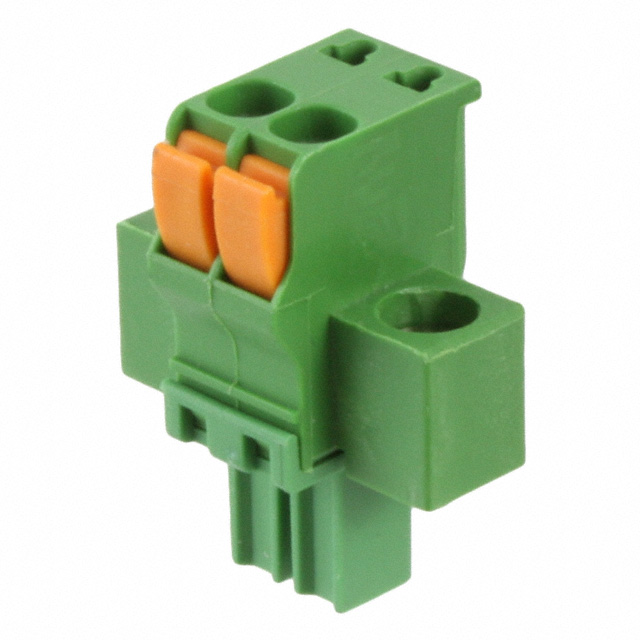

The new spring type straight plugs provide a quick and easy way for installers in the field to mate wires without the use of special tools. TE"s comprehensive solutions, including left and right hand spring plugs, clamp wires in quickly saving both time and labor for a multitude of control and power wiring applications.

得捷:
TERM BLOCK PLUG 2POS STR 3.5MM

e络盟:
接线端子块, 插入式, 2路, 30-14AWG

艾睿:
This 1986725-2 PCB terminal block manufactured from TE Connectivity will bridge different sections of wires together. This F connector&s;s 2 contacts that are made out of copper alloy/steel. This is a 1-row connector. Its pitch is 3.5 mm. It has a maximum voltage rating of 300 VAC. It has a female type gender. It has a straight body orientation. 1986725-2 is housed in polyamide. This device has a maximum current rating of 11 A/contact. This quick disconnect terminal has an operating temperature of -40 to 110 °C. Its wire is 14-30 AWG. This product is 17.3 mm long, 11.65 mm tall and 20.75 mm deep.

Allied Electronics:
Buchanan; Conn; TermBlk; Plug; LtHand; Spring; 2Pole; 3.5mm; 30-14AWG

安富利:
Conn Terminal Block PL 2 POS 3.5mm ST Panel Mount

Verical:
Conn Terminal Block F 2 POS 3.5mm ST Cable Mount 11A/Contact

Newark:
# TE CONNECTIVITY  1986725-2  Pluggable Terminal Block, 3.5 mm, 2 Positions, 30 AWG, 14 AWG, 2 mm², Push In

MASTER:
STR PLUG SPRING TYPE LH, FL 2P, 3.50

Online Components:
STR PLUG SPRING TYPE LH, FL 2P, 3.50

Electro Sonic:
STR PLUG SPRING TYPE LH, FL 2P, 3.50
