19164-0065概述

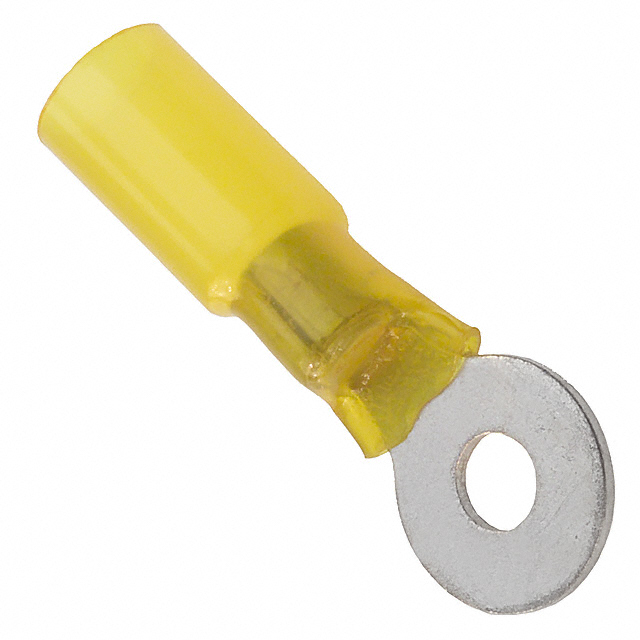

MOLEX  19164-0065  快速断开端子, Perma-Seal 19164系列, 12 AWG, 10 AWG

The Perma-Seal 19164 series Simple Wire Splice designed for heavy-vibration applications and in harsh environments where sealed connections are required. Whether it is repairing wiring in the field, adding a wire to an existing harness or attaching two or more wires to the same point, has a splice that is perfect for the job. Splices are offered un-insulated or insulated for crimp termination. Whether using solid or stranded wire, several options for splicing are offered by Molex.

19164-0065中文资料参数规格
技术参数

极性 Female

线规 10AWG ~ 12AWG

触点电镀 Tin

无卤素状态 Low Halogen

方向 Straight

端接类型 Ring

封装参数

封装 -

外形尺寸

长度 39.4 mm

封装 -

厚度 0.79 mm

物理参数

颜色 Yellow

触点材质 Copper Alloy

绝缘材质 Nylon

其他

产品生命周期 Active

包装方式 Bulk

制造应用 Automotive, Motor Drive & Control, Aerospace, Defence, Military, HVAC, Consumer Electronics, Lighting

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

REACH SVHC标准 No SVHC

军工级 Yes

数据手册

在线购买19164-0065
型号: 19164-0065
制造商: Molex 莫仕
描述:MOLEX  19164-0065  快速断开端子, Perma-Seal 19164系列, 12 AWG, 10 AWG
