AMPHENOL RF 112526. 射频/同轴连接器, BNC 直角型

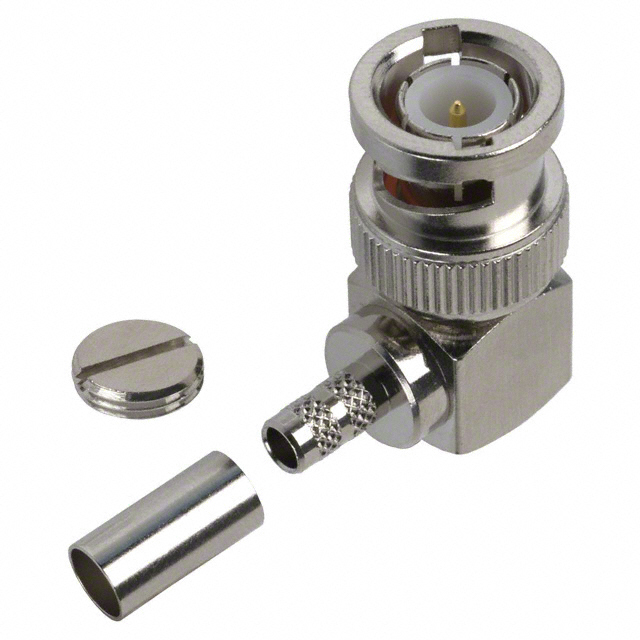

The is a BNC right angle Crimp Plug with gold-plated brass contacts, nickel-plated brass body and a Delrin insulator. The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. Designed to accommodate a large variety of RG and industry standard cables. This 50R miniature BNC connector is designed for RG-142, RG-223, RG-400 and RG-55 cable.
- .
- Standard polarity
- .
- 5000MR Minimum insulation resistance
- .
- 500 Mating cycles
极性 Male
触点电镀 Gold
绝缘电阻 5000 MΩ
拔插次数 500
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 500 V
安装方式 Solder
长度 27.3 mm
高度 26.7 mm
外壳颜色 Silver
触点材质 Brass
工作温度 -65℃ ~ 165℃
产品生命周期 Active
包装方式 Bulk
制造应用 车用, 医用, 射频通信, Communications & Networking, Sensing & Instrumentation, Computers & Computer Peripherals, 通信与网络, 传感与仪器, Automotive, Medical, RF Communications, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
112526 Amphenol 安费诺 | 当前型号 | 当前型号 |
73216-0050 莫仕 | 类似代替 | 112526和73216-0050的区别 |
MC23574 Multicomp | 类似代替 | 112526和MC23574的区别 |
