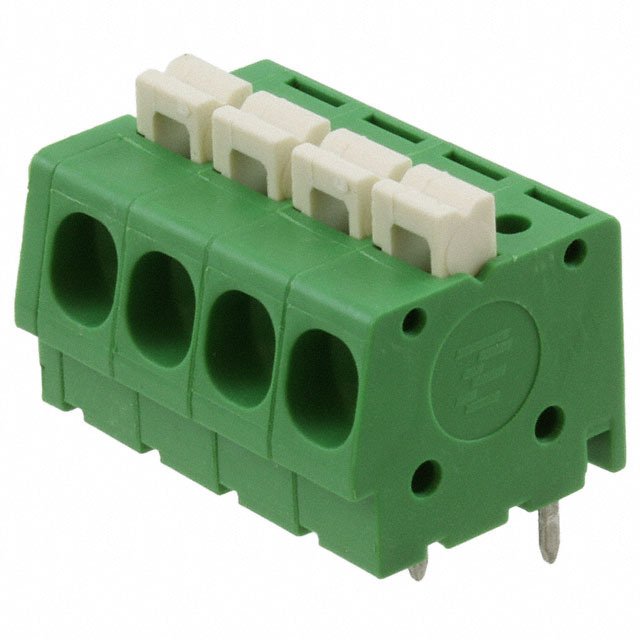

1986711-4

TE CONNECTIVITY  1986711-4  接线端子块, 弹簧, 4路, 30-12AWG

SCREWLESS, SW,4P,5.0 PCB

得捷:
TERM BLK 4POS SIDE ENTRY 5MM PCB

贸泽:
Fixed Terminal Blocks 5.0MM S/E SPRING 4P SCREWLESS TERM BLOCK

e络盟:
接线端子块, 弹簧, 4路, 30-12AWG

艾睿:
When you implement this 1986711-4 PCB terminal block from TE Connectivity, you will get the best connections results for your circuit! This is a 1-row connector. It has a maximum voltage rating of 300 VAC. It has a straight body orientation. Its pitch is 5 mm. This device has a maximum current rating of 16 A/contact. 1986711-4 is housed in polyamide. It uses the solder termination method. This quick disconnect terminal has an operating temperature of -40 to 110 °C. This product is 21.5 mm long, 14.45 mm tall and 14.8 mm deep. Its wire is 12-30 AWG.

Verical:
Conn Terminal Block 4 POS 5mm Solder ST Thru-Hole 16A/Contact

Newark:
# TE CONNECTIVITY  1986711-4  Wire-To-Board Terminal Block, Spring, 5 mm, 4 Positions, 30 AWG, 12 AWG, 3 mm², Push In

MASTER:
SPRING TYPE. SIDE WIRE ENTRY TERMINAL BLOCK SIDE STACKABLE

Online Components:
SCREWLESS, SW,4P,5.0 PCB

Electro Sonic:
SCREWLESS, SW,4P,5.0 PCB
